INTERFACE CNC Touch Controller

Discussion in 'Other Builds' started by OpenBuilds, Dec 15, 2020.

  1. OpenBuilds

    Staff Member Moderator Project Maker Builder Resident Builder

    Joined:
    Sep 23, 2019
    Messages:
    12
    Likes Received:
    52
    OpenBuilds published a new build:

    Read more about this build...

    Rhett E and Peter Van Der Walt like this.
  2. sharmstr

    sharmstr OpenBuilds Team
    Staff Member Moderator Builder Resident Builder

    Joined:
    Mar 23, 2018
    Messages:
    1,301
    Likes Received:
    837
    Congrats.

    Can you run OB control on a pc at the same time or is it one or the other?

    Mark Carew likes this.
  3. Peter Van Der Walt

    Peter Van Der Walt OpenBuilds Team
    Staff Member Moderator Project Maker Builder Resident Builder

    Joined:
    Mar 1, 2017
    Messages:
    6,033
    Likes Received:
    2,064
    It allows passthrough from CONTROL :)

    PC -> Interface -> BlackBox

  4. sharmstr

    sharmstr OpenBuilds Team
    Staff Member Moderator Builder Resident Builder

    Joined:
    Mar 23, 2018
    Messages:
    1,301
    Likes Received:
    837
  5. romamaker

    romamaker Well-Known
    Builder

    Joined:
    Nov 14, 2017
    Messages:
    57
    Likes Received:
    40
    Nice. I'm going to give one a shot on my Lead. Maybe keep the laptop a little more dust free now.

    Ariel Yahni and Mark Carew like this.
  6. romamaker

    romamaker Well-Known
    Builder

    Joined:
    Nov 14, 2017
    Messages:
    57
    Likes Received:
    40
    I do hope that one of the "extra functionality from your Interface" that the WiFi can be used for will be to remotely upload a job to Interface. Would be nice to be able to leave the USB stick plugged in, and be able to remotely upload gcode files, rather then having to sneaker net it back and forth.

  7. ljvb

    ljvb Well-Known
    Builder

    Joined:
    Feb 14, 2019
    Messages:
    155
    Likes Received:
    58
    I like it... but I am disappointed that it is tied to the Blackbox. I think it should have been as close to device/brand independent. This can allow for a larger potential audience because many of the generic pendants on the market just suck.

    David Bourne likes this.
  8. romamaker

    romamaker Well-Known
    Builder

    Joined:
    Nov 14, 2017
    Messages:
    57
    Likes Received:
    40
    It does say it will work with any GRBL 1.1 controller, but you may have to make your own cable. It's just more plug and play compatible with Blackbox.

    Peter Van Der Walt likes this.
  9. Kendall Bottomley

    Builder

    Joined:
    Jan 15, 2015
    Messages:
    2
    Likes Received:
    0
    Does it allow zeroing of one axis at a time (like Z axis) or just all three XYZ axis? Hard to tell from pics and current documentation. Also I agree with one the previous statements that upload via wifi would be an incredibly useful feature, even if it's down the road ;)

  10. Peter Van Der Walt

    Peter Van Der Walt OpenBuilds Team
    Staff Member Moderator Project Maker Builder Resident Builder

    Joined:
    Mar 1, 2017
    Messages:
    6,033
    Likes Received:
    2,064
  11. Peter Van Der Walt

    Peter Van Der Walt OpenBuilds Team
    Staff Member Moderator Project Maker Builder Resident Builder

    Joined:
    Mar 1, 2017
    Messages:
    6,033
    Likes Received:
    2,064
    Allows probing one axis at a time: See docs:interface:usage-probe [OpenBuilds Documentation]
    But not manual individual zeroing at this time.

    Upload is on the future planned features list

    Kendall Bottomley likes this.
  12. ljvb

    ljvb Well-Known
    Builder

    Joined:
    Feb 14, 2019
    Messages:
    155
    Likes Received:
    58
    I stand corrected.. thats good.

    Peter Van Der Walt likes this.
  13. ljvb

    ljvb Well-Known
    Builder

    Joined:
    Feb 14, 2019
    Messages:
    155
    Likes Received:
    58
    Will there be cad/sketchup of the internals.. Or is the Interface closed source...

  14. scratch

    scratch New
    Builder

    Joined:
    Jul 23, 2017
    Messages:
    11
    Likes Received:
    7
    Does anyone know if it will work with very large gcode files? I'm finding most of the senders that I have available choke when you get much past 2 million lines or so.

    EDIT: I'll let you know when mine arrives :)

  15. Mark Carew

    Mark Carew OpenBuilds Team
    Staff Member Moderator Project Maker Builder Resident Builder

    Joined:
    Jun 28, 2013
    Messages:
    2,561
    Likes Received:
    2,112
    We work with other company's in the creation of some of our products, so we share what we can. There will be a cad/sketchup dimensional model for sizing on your builds.
    EDIT: The CAD model has been added to the Build page as well as the Drawings and Files Tab

    #15 Mark Carew, Dec 15, 2020
    Last edited: Dec 16, 2020
    Jack D likes this.
  16. Mark Carew

    Mark Carew OpenBuilds Team
    Staff Member Moderator Project Maker Builder Resident Builder

    Joined:
    Jun 28, 2013
    Messages:
    2,561
    Likes Received:
    2,112
    I have to say you guys will LOVE having this on your machines! Its been an amazing time throughout the entire development process and props have to go out to everyone on the Team here working so hard to make this idea a reality. During and throughout testing we all agreed here that once you start using it, it just becomes the new natural way of the workflow process. The firmware will continue to develop as we move forward and we look forward to your feedback. We are super excited to get these out to you as soon as possible to help make your OpenBuilds experience the best it can be!

  17. ljvb

    ljvb Well-Known
    Builder

    Joined:
    Feb 14, 2019
    Messages:
    155
    Likes Received:
    58
    So.. constructive criticism.. Instead of the OK button.. a jog wheel I think would have worked better than directional buttons, and switch the directional buttons... For future revisions :)

    Mark Carew likes this.
  18. ekek3d

    ekek3d New
    Builder

    Joined:
    Jul 5, 2017
    Messages:
    5
    Likes Received:
    4
    Just pre-ordered mine....

  19. Rob Taylor

    Rob Taylor Master
    Builder

    Joined:
    Dec 15, 2013
    Messages:
    1,135
    Likes Received:
    519
    Well, I guessed right. The name wasn't exactly cryptic though. :p

    Jog wheel gets very tricky converting to usable real-time commands with grbl. It's not like LinuxCNC where you can tie signals together. Buttons are almost certainly part of the passthrough option from CONTROL, too- it replicates a lot of what's on screen, negating the need for keyboard use about 95% of the time.

  20. Quiglag

    Quiglag New
    Builder

    Joined:
    Aug 16, 2016
    Messages:
    4
    Likes Received:
    0
    Looks awesome. I only wish it were oriented vertically and not horizontally. Is there any worry about the wire coming unplugged?

  21. Mark Carew

    Mark Carew OpenBuilds Team
    Staff Member Moderator Project Maker Builder Resident Builder

    Joined:
    Jun 28, 2013
    Messages:
    2,561
    Likes Received:
    2,112
    Rob you may have been first to guess right:thumbsup: I will check with the Team tomorrow to find out.:nailbite:

    Jack D likes this.
  22. Mark Carew

    Mark Carew OpenBuilds Team
    Staff Member Moderator Project Maker Builder Resident Builder

    Joined:
    Jun 28, 2013
    Messages:
    2,561
    Likes Received:
    2,112
    The connector has a lock on the Interface side

  23. sharmstr

    sharmstr OpenBuilds Team
    Staff Member Moderator Builder Resident Builder

    Joined:
    Mar 23, 2018
    Messages:
    1,301
    Likes Received:
    837
    Dropbox please :) Though I cant imagine I'll run this without control running on a pc.

  24. Jack D

    Jack D Well-Known
    Staff Member Project Maker Builder

    Joined:
    Aug 22, 2018
    Messages:
    27
    Likes Received:
    159
    Love the design of this Mark!. Looks great.

    Peter Van Der Walt likes this.
  25. ljvb

    ljvb Well-Known
    Builder

    Joined:
    Feb 14, 2019
    Messages:
    155
    Likes Received:
    58
    As the resident IT Security specialist (I am assuming a lot here.. but 20 years in bringing pain to companies that pay me to....). This is a terrible idea.. Anything that connects to the cloud, or external services is just another attack vector. Keep everything local..

    David the swarfer likes this.
  26. Metalguru

    Metalguru Veteran
    Builder

    Joined:
    Dec 29, 2015
    Messages:
    725
    Likes Received:
    509
    I have some questions:

    1. Where does the Interface get its power from? The BB 5V output? Or does it need to be plugged into a USB C charger or something? How much current does it draw?
    2. Could one connect this to an Arduino Uno or Nano via the PD0/PD1 port? Does the USB/Serial interface (CH340/FT232) need to be disconnected?
    3. Does the Arduino supply enough current to run it when powered from USB? Or does the Interface power the Arduino?
    4. How does it function through the OB Control interface? Is Control still fully functional?
    5. How do you set the GRBL internal (eeprom) settings using this?
    6. What is the purpose of the TVS module supplied with the unit? Why would one need a Transient Voltage Suppressor on the Black Box? Would this also be required when using an Arduino?

    Not really a question, but the documentation seems pretty minimal and leaves out a lot of important information, IMHO.

    MG

  27. Peter Van Der Walt

    Peter Van Der Walt OpenBuilds Team
    Staff Member Moderator Project Maker Builder Resident Builder

    Joined:
    Mar 1, 2017
    Messages:
    6,033
    Likes Received:
    2,064
    From BlackBox.
    see docs:interface:connect-generic [OpenBuilds Documentation]
    Yes
    Only for BlackBox

    sharmstr likes this.
  28. Rob Taylor

    Rob Taylor Master
    Builder

    Joined:
    Dec 15, 2013
    Messages:
    1,135
    Likes Received:
    519
    Oh really? That "blue-screen" pic from a few days ago was a pretty good giveaway, I thought. It looks good though, I like the haptic feedback. Nice job!

  29. Rhett E

    Rhett E Well-Known
    Builder

    Joined:
    Aug 3, 2020
    Messages:
    51
    Likes Received:
    30
    I believe it was ingenious of OB to design the Interface in a similar (same?) footprint as the Blackbox. Now our significant others will have no idea we bought something new. I can just mount my Blackbox in a hidden spot and I'm set.

    Wife: Why are you always holding that black box thing now?
    Me: It's just easier this way.

  30. Peter Van Der Walt

    Peter Van Der Walt OpenBuilds Team
    Staff Member Moderator Project Maker Builder Resident Builder

    Joined:
    Mar 1, 2017
    Messages:
    6,033
    Likes Received:
    2,064
    While we definitely support any kind of camouflage to keep spousal relations high, there's actually more to this than coincidence (;

    Not only, is it sized to be as you assumed, the "same" size as a BlackBox...


    We also took care to line up the mounting holes, and added ventilation holes, so that you can affix it to your BlackBox!

    Full documentation page will be added soon - briefly:

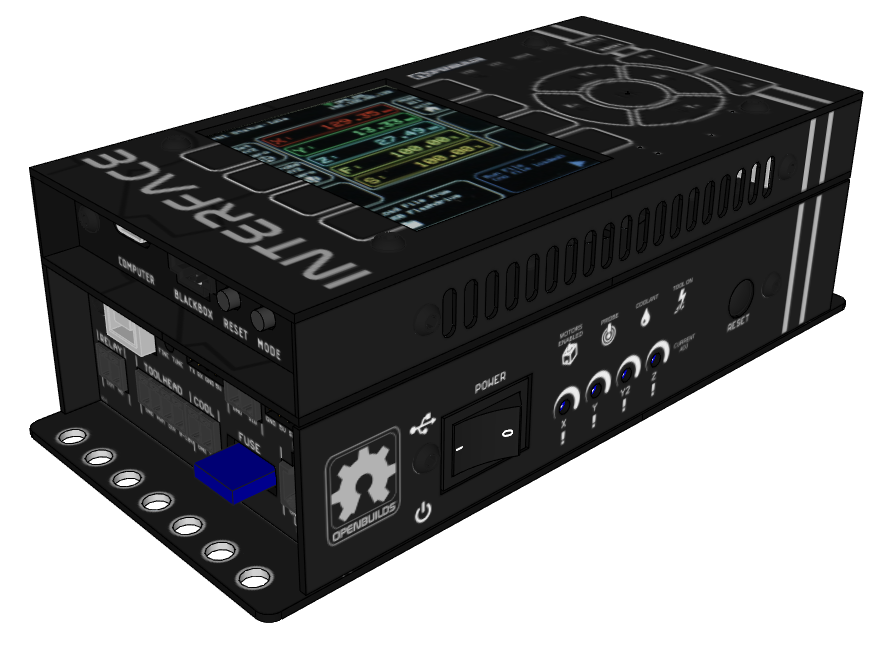

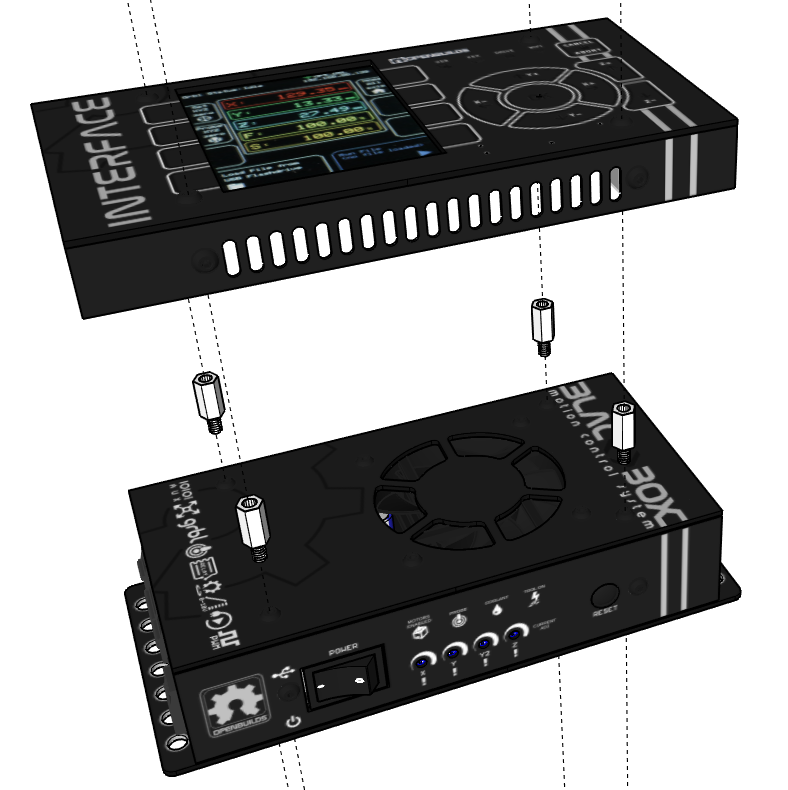

    1) Disassemble the Interface, set aside its bottom cover and 4x 12mm female-female hex spacers, they will not be needed it for the mated assembly
    2) Remove the 4 screws that hold the BlackBox's top cover in place
    3) Replace these with 4x Hex Standoff - M3 (4 Pack) (The 12mm Female x 6mm Male version) (remember to add to Cart if you plan on doing this)
    4) Reassemble the Interface onto these spacers as a reverse of the disassembly.



    Mark Carew, Rhett E and sharmstr like this.
