Y-axis issues! Screeching, vibrations HELP!

Discussion in 'OpenBuilds Forum Help' started by P.Abraham, Sep 13, 2020.

  1. P.Abraham

    P.Abraham New
    Builder

    Joined:
    Sep 2, 2020
    Messages:
    12
    Likes Received:
    1
    Hi there,

    I've been stuck with this issue for the last 2 weeks and for the life of me can't seem to figure it out.

    The y-axis is acting up. It screeches, vibrates, sometimes it jams... It just won't play nicely! I'm jogging at 5000mm/min.





    Things I've tried
    Checked wiring
    Dry-lubed lead screws
    Tensioned lead screws


    My machine
    Workbee 1515 (lead screw)
    Blackbox

  2. P.Abraham

    P.Abraham New
    Builder

    Joined:
    Sep 2, 2020
    Messages:
    12
    Likes Received:
    1
    If someone could please help me troubleshoot this that would be greatly appreciated!

  3. Alex Chambers

    Alex Chambers Openbuilds team
    Moderator Builder

    Joined:
    Nov 1, 2018
    Messages:
    1,960
    Likes Received:
    947
    Start by slowing down! Go all the way back down to 2500 mm/min and let us know if you still have the problems.
    Alex.

  4. Giarc

    Giarc OpenBuilds Team
    Staff Member Moderator Builder Resident Builder

    Joined:
    Jan 24, 2015
    Messages:
    2,275
    Likes Received:
    1,222
    That last video looked like one motor did not turn. Are there loose wires? I have had some thing similar happen when the gantry got out of square due to a crash. I forgot to re-square it and it would bind up while running.

    Bilrob likes this.
  5. P.Abraham

    P.Abraham New
    Builder

    Joined:
    Sep 2, 2020
    Messages:
    12
    Likes Received:
    1
    Hey guys, thanks for getting back to me. Sorry for the delay in my response, I only get to work on this over the weekends.

    @Alex Chambers I gave that a shot and yeah it does help, so far. Any ideas on what typical speeds might be for a lead screw 1515? I'd ideally like to figure out the root cause, especially if you can expect higher performance from your machine.

    @Giarc That's actually a great thought! I do remember having some strife with one of the grub screws binding the lead screw and the stepper shaft. I'll spend tomorrow trouble shooting that and report back what I find!

    Noob question... is 5000mm/min jog speed generally considered to be too fast? Running a 1515 lead screw workbee.

    Thanks again for the suggestions!

  6. P.Abraham

    P.Abraham New
    Builder

    Joined:
    Sep 2, 2020
    Messages:
    12
    Likes Received:
    1
    @Giarc that was it! I had a grub screw that wasn't binding the lead screw properly. Popped down to the hardware, replaced it and 5000mm/min seems to be working just fine for now! Although I might take Alex's advice and keep it a bit lower than that. Thanks all, hopefully I won't be back on this thread for a while :D

    Alex Chambers likes this.
  7. Alex Chambers

    Alex Chambers Openbuilds team
    Moderator Builder

    Joined:
    Nov 1, 2018
    Messages:
    1,960
    Likes Received:
    947
    5000 mm/min should be achievable (for rapid moves - cutting is a different story). I suggested slowing down to give you a chance to see what might be happening. Glad you are sorted.
    Alex.

  8. Bilrob

    Bilrob New
    Builder

    Joined:
    Aug 12, 2020
    Messages:
    9
    Likes Received:
    2
    Hi, I have the same issue as P. Abraham, do I have to take part of the machine apart to square it back?

  9. Giarc

    Giarc OpenBuilds Team
    Staff Member Moderator Builder Resident Builder

    Joined:
    Jan 24, 2015
    Messages:
    2,275
    Likes Received:
    1,222
    Turn off all power, unplug the motors, and turn the screws by hand until it is close to square. Then repower everything, jog it to the front of the machine, adjust as necessary by hand (no power) until it is square.

    Bilrob likes this.
  10. Bilrob

    Bilrob New
    Builder

    Joined:
    Aug 12, 2020
    Messages:
    9
    Likes Received:
    2
    I tried that and It still looks that my y axis blocks on the right side. My number 6 on the picture starts fine but then blocks and my machine goes out of control.


    Attached Files:

    • 6.jpg
      File size:
      97.6 KB
      Views:
      11
  11. Peter Van Der Walt

    Peter Van Der Walt OpenBuilds Team
    Staff Member Moderator Project Maker Builder Resident Builder

    Joined:
    Mar 1, 2017
    Messages:
    8,368
    Likes Received:
    2,746
    From the picture I'd say

    1) Check grubscrews on motor and leadscrew sides both: A little locktite helps, make sure setscrews on motor is on the Flat side of the D-shaped motor shaft

    2) Check wiring, intermittent connection fault will also cause motor to do that. See docs:blackbox:faq-identify-motor-coils [OpenBuilds Documentation]

    Bilrob likes this.
  12. Bilrob

    Bilrob New
    Builder

    Joined:
    Aug 12, 2020
    Messages:
    9
    Likes Received:
    2
    Will try, thanks. I'll let you know.

  13. Bilrob

    Bilrob New
    Builder

    Joined:
    Aug 12, 2020
    Messages:
    9
    Likes Received:
    2

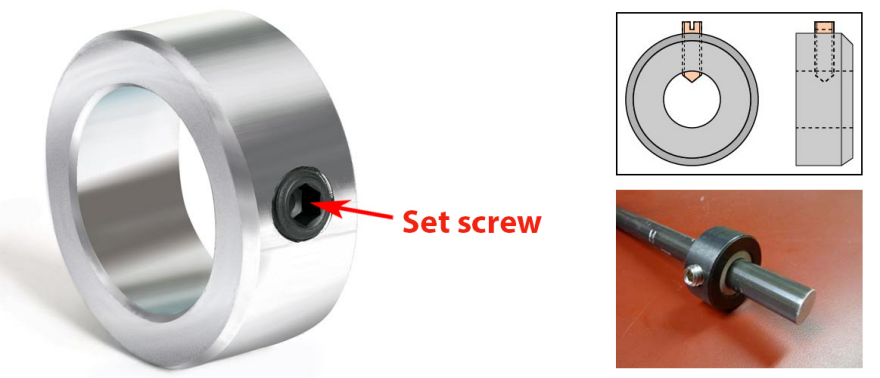

    Sorry to ask, I can speak and write english but my native language is french. What are grubscrews? I looked on the Openbuilds part but they don't list that.

  14. Rob Taylor

    Rob Taylor Master
    Builder

    Joined:
    Dec 15, 2013
    Messages:
    1,352
    Likes Received:
    653
