X-Pro Sketchup 3D model

Discussion in 'Controller Boards' started by gianakop, Jan 8, 2017.

Tags:
  1. gianakop

    gianakop Well-Known
    Builder

    Joined:
    Feb 27, 2015
    Messages:
    8
    Likes Received:
    15
    Hello everybody,

    I've just ordered and received a C-Beam Machine Mechanical Bundle and the xPRO V3 Controller.

    I have a 3d printer and I’m starting to create some accessories for my build.

    To help myself for my designs, I made a Sketchup Model for the new amazing xPRO V3 Controller and I share it with you.
    I hope you find it useful for your designs …
    Althought the model isn't 100% detailed be sure that the dimensions of crusial points (holes etc) are accurate.




    Attached Files:

    Serge E., Mark Carew and Moag like this.
  2. Mark Carew

    Mark Carew OpenBuilds Team
    Staff Member Moderator Resident Builder Project Maker Builder

    Joined:
    Jun 28, 2013
    Messages:
    1,949
    Likes Received:
    1,125
    @gianakop good timing my friend! Thank you for taking the time to put this model together and sharing it with the community. At the same time we just uploaded the xPRO V3 Model from Spark Concepts to the 3D warehouse under the OpenBuilds Electronics section. It has some more of the details that help and is nice yo have it on the warehouse. Hope this helps and again thank you for helping out while we worked to get this uploaded.


    gianakop likes this.
  3. gianakop

    gianakop Well-Known
    Builder

    Joined:
    Feb 27, 2015
    Messages:
    8
    Likes Received:
    15
    Thank you Mark!


    Awesome 3d Model!
    Thank fro sharing!
    I wish I had it last night.! :)
    Anyway it was an opportunity for me to admire all the detailed work on the X- Pro Board.!
    I have build my C-beam and I 'm waiting for some meaningless electronics (plugs, switches etc) from e-bay, to complete the electronics connections. I'm reading all the post to find answers for my qwestions .....

    Mark Carew likes this.
  4. Mark Carew

    Mark Carew OpenBuilds Team
    Staff Member Moderator Resident Builder Project Maker Builder

    Joined:
    Jun 28, 2013
    Messages:
    1,949
    Likes Received:
    1,125
    Agreed it really is! Got to give the props and credit to the Spark Concept guys though they put this one together for all of us here at OpenBuilds.
    :thumbsup: Sorry wish I had posted it a little sooner, but the more the better
    Awesome! All the best with the Build hope it brings you tons of fun as well as a great learning experience!
    Thanks again for making and sharing this model brother.

    gianakop likes this.
  5. GinoTheCop

    GinoTheCop Master
    Builder

    Joined:
    Jan 28, 2016
    Messages:
    106
    Likes Received:
    144
    Maybe I should work on a Fusion 360 model as well.

    Work in progress;

    [​IMG]

    Mark Carew likes this.
  6. Mark Carew

    Mark Carew OpenBuilds Team
    Staff Member Moderator Resident Builder Project Maker Builder

    Joined:
    Jun 28, 2013
    Messages:
    1,949
    Likes Received:
    1,125
    Hi @JustinTime no this is not the control board that we did the naming contest for. That board is still in the works. :thumbsup:
    @GinoTheCop that model is looking great! Thank you for taking the time to work this up.

  7. GinoTheCop

    GinoTheCop Master
    Builder

    Joined:
    Jan 28, 2016
    Messages:
    106
    Likes Received:
    144
    Not a problem @Mark Carew

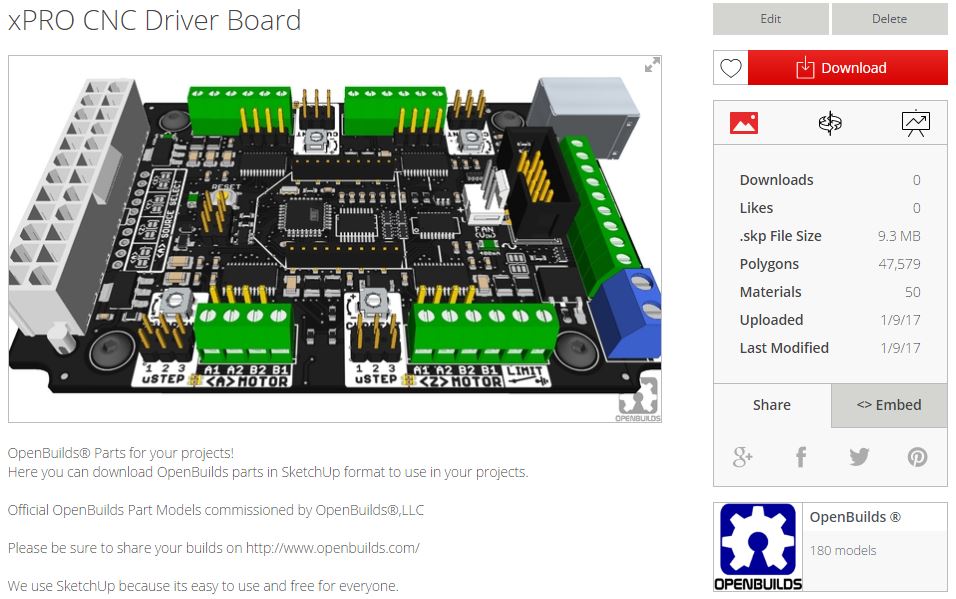

    The model can be downloaded from here in different formats.

    It should be pretty accurate in dimensions etc. The tiny little componenets are not included in the model to keep the size of the file small. It should be good enough for most as it is.

    [​IMG]

  8. Mark Carew

    Mark Carew OpenBuilds Team
    Staff Member Moderator Resident Builder Project Maker Builder

    Joined:
    Jun 28, 2013
    Messages:
    1,949
    Likes Received:
    1,125
    Sweet! nice job @GinoTheCop
    This would make for a nice addition to the Resource Parts section ;) if you could take the time to share it that that would be super helpful. (Things then to get lost in the threads :) )
    Thank you in advance my friend
    Mark

  9. GinoTheCop

    GinoTheCop Master
    Builder

    Joined:
    Jan 28, 2016
    Messages:
    106
    Likes Received:
    144
    Thanks for the heads up Mark.. Its done :):thumbsup:

    Mark Carew likes this.
