    Alright. So im a 14 year old self proclaimed wannabe engineer.
    I have recently set for myself to build a cnc machine, to make my projects easier.
    So i asked my dad if i could build one, and he said yes.
    AS LONG AS I HAVE ALL THE PLANS AND PART LISTS, AS WELL AS 3D MODELS.
    So this is where is started crying. No im kidding im not 13..
    I then started trying to learn SketchUp, as i saw that this is where Openbuilds has its parts, and here comes my problem.
    When i take the parts from the warehouse, they dont snap into each other, and i cant allign them right.
    I also have to try a buttload of parts to find one that fits into the other about right, although i cant REALLY check this, as the nut wont go in the hole (pun intended).

    Am i missing some plugin or something? Or is it really just that hard?

    Moag likes this.
  2. Rick 2.0

    Rick 2.0 OpenBuilds Team
    Staff Member Moderator Builder

    Joined:
    Dec 20, 2013
    Messages:
    1,506
    Likes Received:
    625
    I'm no expert on Sketchup either so I tend to just do it the easy way. Rather than take a whole lotta individual parts and try to fit them all together I tend to take files of completed systems and assemblies and then manipulate them into what I need. Go to the files tab on any of Mark Carew's builds and download full models and then manipulate the files from there. It's a lot easier to start with assemblies that already have wheels in the holes, track in alignment, etc. Read up on editing components and you'll be able fairly quickly to pull things like gantry plates/wheel assemblies out of a completed system and move them as a unit to where you want them. Also look up the "make unique" function as editing a component affects all instances in a drawing and in many cases you probably don't want to do that.

    Kyo likes this.
  3. Alexander Boje Lassen

    Builder

    Joined:
    Jun 18, 2016
    Messages:
    4
    Likes Received:
    1
    Problem is, i want to build a unique idea that is already in my head... Thanks for your answer.

  4. Kyo

    Kyo Master
    Staff Member Resident Builder Builder

    Joined:
    Feb 27, 2014
    Messages:
    619
    Likes Received:
    537
    First off, Welcome. That is awesome you are 14 and already interested in cad design, cnc, and building. And thank you dad for being supportive. :thumbsup:

    I will second Rick, when you are first learning a cad package ( any package ) begin by reviewing and modifying known examples. It will not only help you learn the software but how the person went about making the model.

    To help with snapping and aligning of parts. Make sure you have your guides turned on. ( In the menu click View - guides make sure it is checked. ) Then when you are going to move parts around Hit your M key to bring up the move tool and click a center guide point "say a center of a nut" you can now drag that part and snap it to another guide point; such as a center point of a bolt. Holding shift left mouse click on both the nut and bolt and right click make group. You now have a assembly you can copy and paste for as many as you need. Components and groups are very very handy tools.

    There are a lot of cool plugins you can use with sketchup most things for designing a cnc do not need a plugin but make one task or another easier and then you have plugins that will expanded what sketchup can do. Each user will slowly build a list of plugins they need and use as they progress with their designs.


    Best thing I find is to start with a detailed pencil and paper drawing (they dont have to be good, only you have to understand them) all my designs begin this way with a fully dimensioned sketch, It is a lot quicker to go through many idea revisions when all you have to do is scribble something out and redraw it.

    Once the idea has been flushed. You can begin to model it in your cad package. in sketchup I start with a 3d basic ( box, cube, ball, ect ) and combine and remove to get where I want. In Fusion I start with a 2d sketch and extrude the 3d shape from it.

    Rick 2.0 likes this.
  5. Rick 2.0

    Rick 2.0 OpenBuilds Team
    Staff Member Moderator Builder

    Joined:
    Dec 20, 2013
    Messages:
    1,506
    Likes Received:
    625

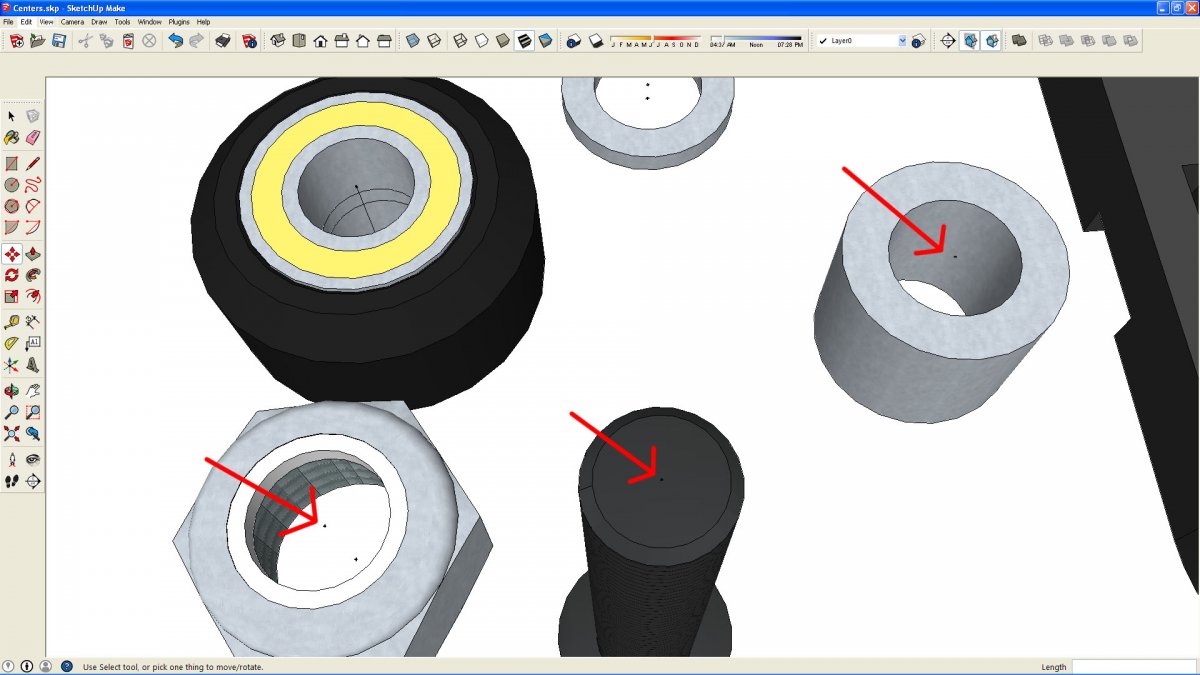

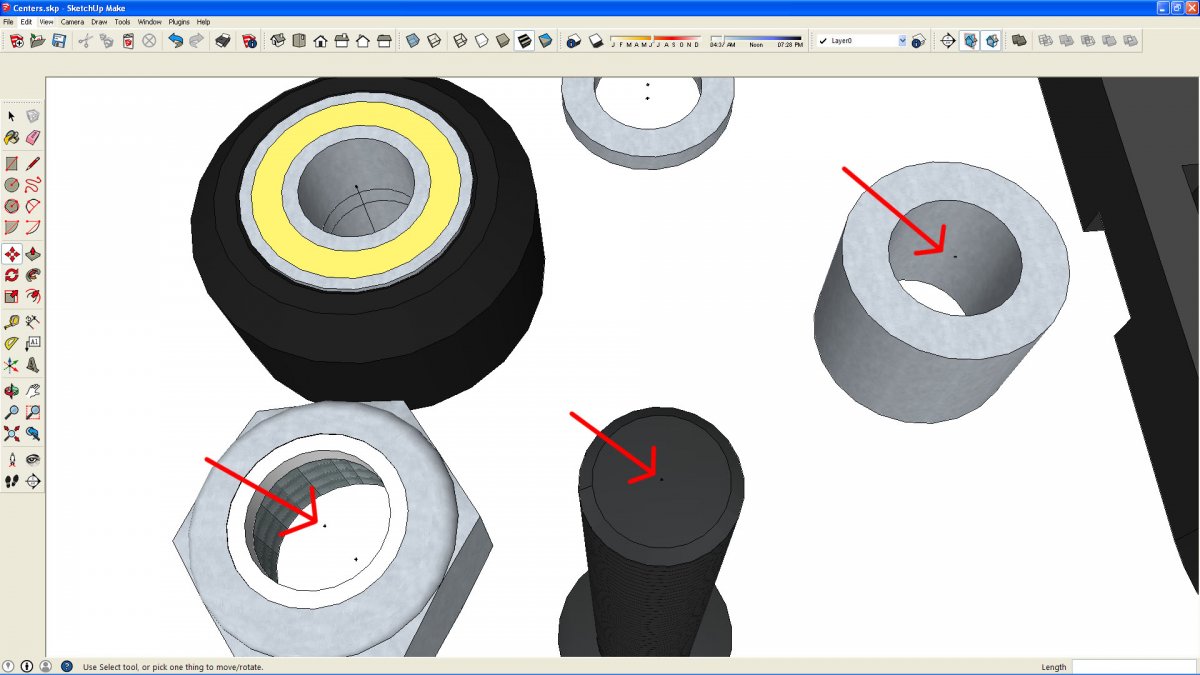

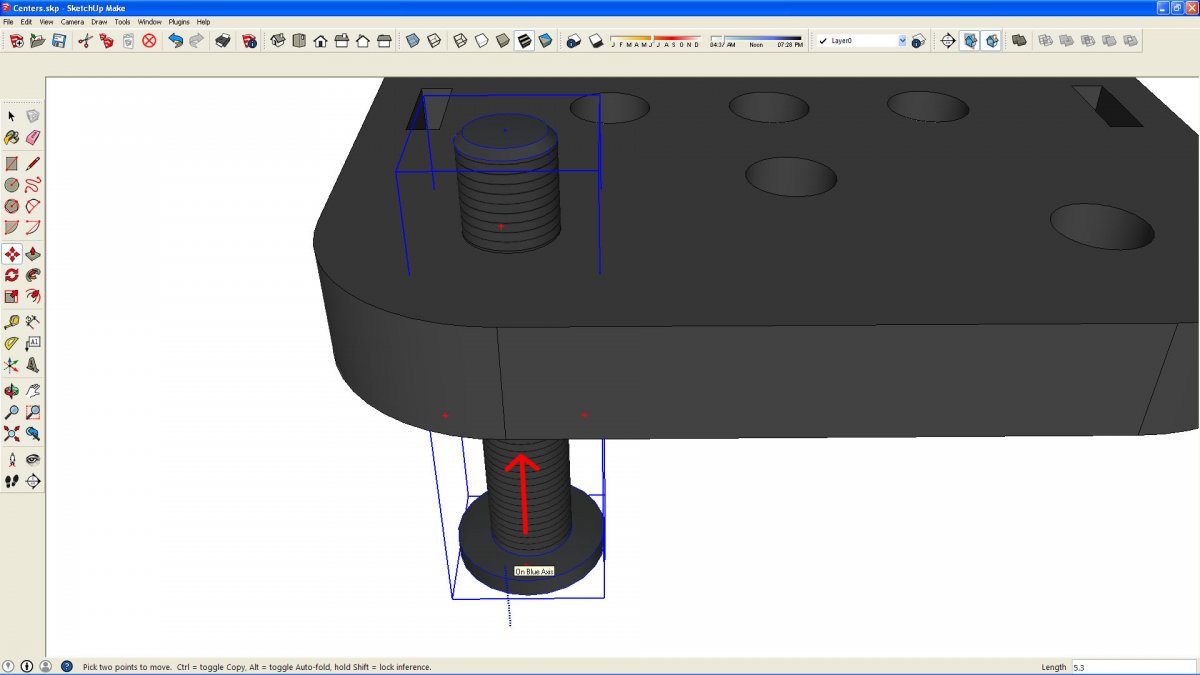

    This is what Kyo is referring to. The black dots are center marks.

    Step 1.jpg

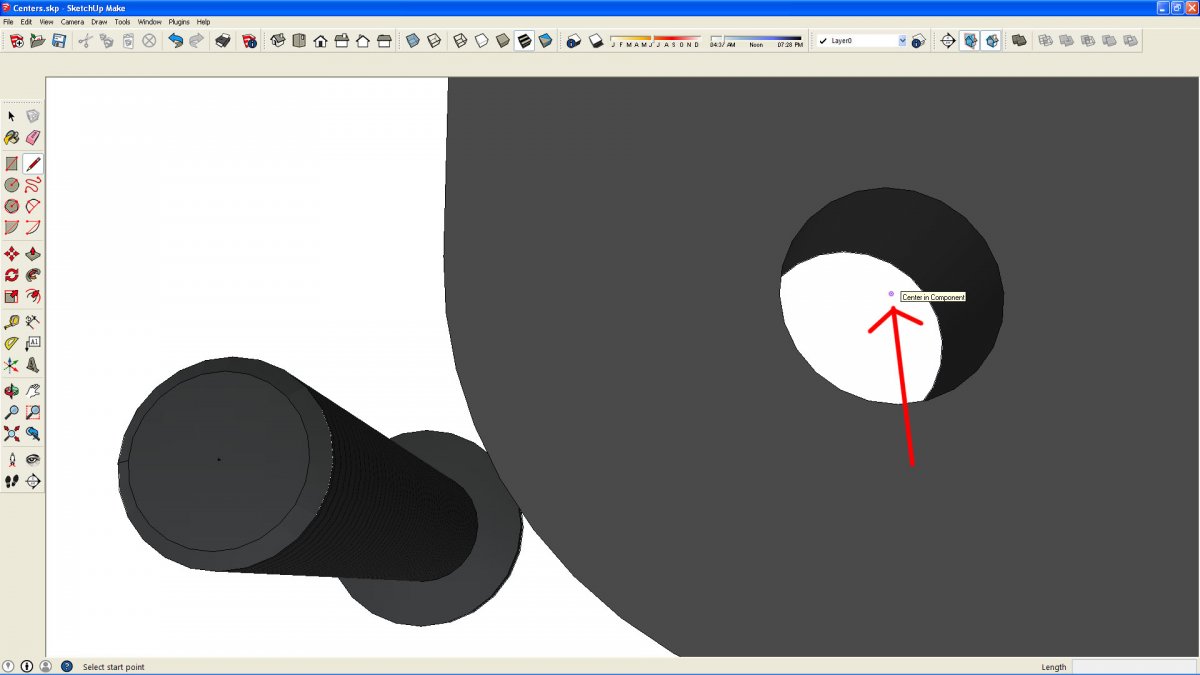

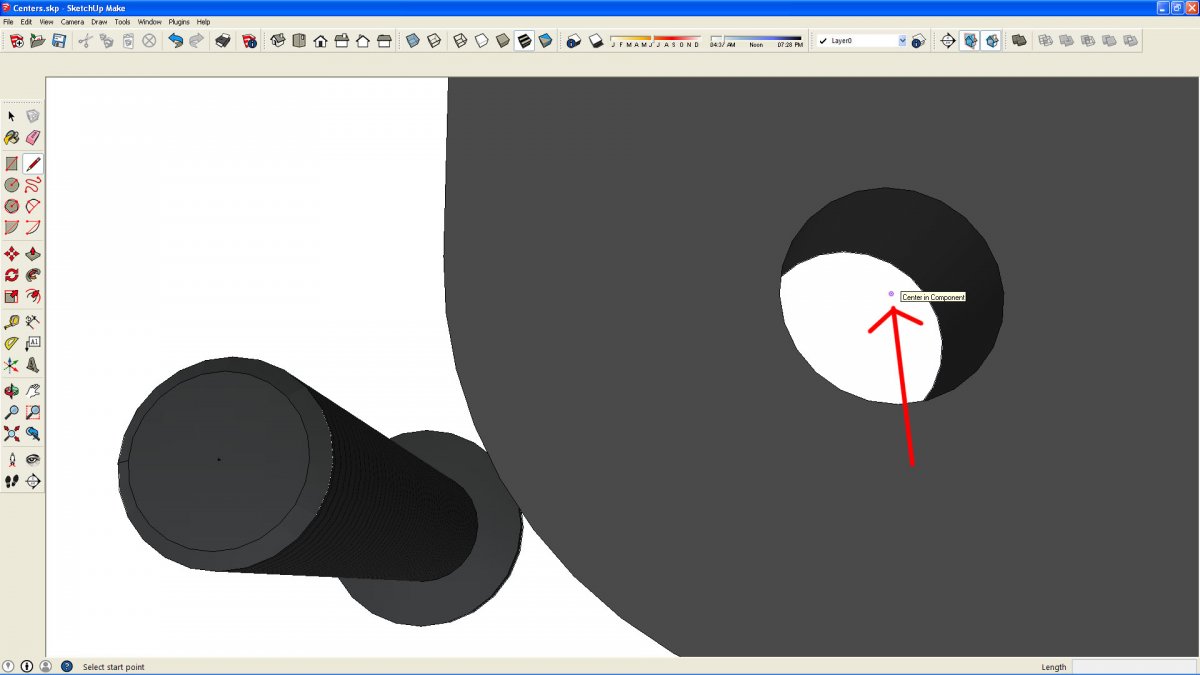

    The purple dots shown are snap to points and show up when you hover over the area you are trying to snap to.

    Step 2.jpg

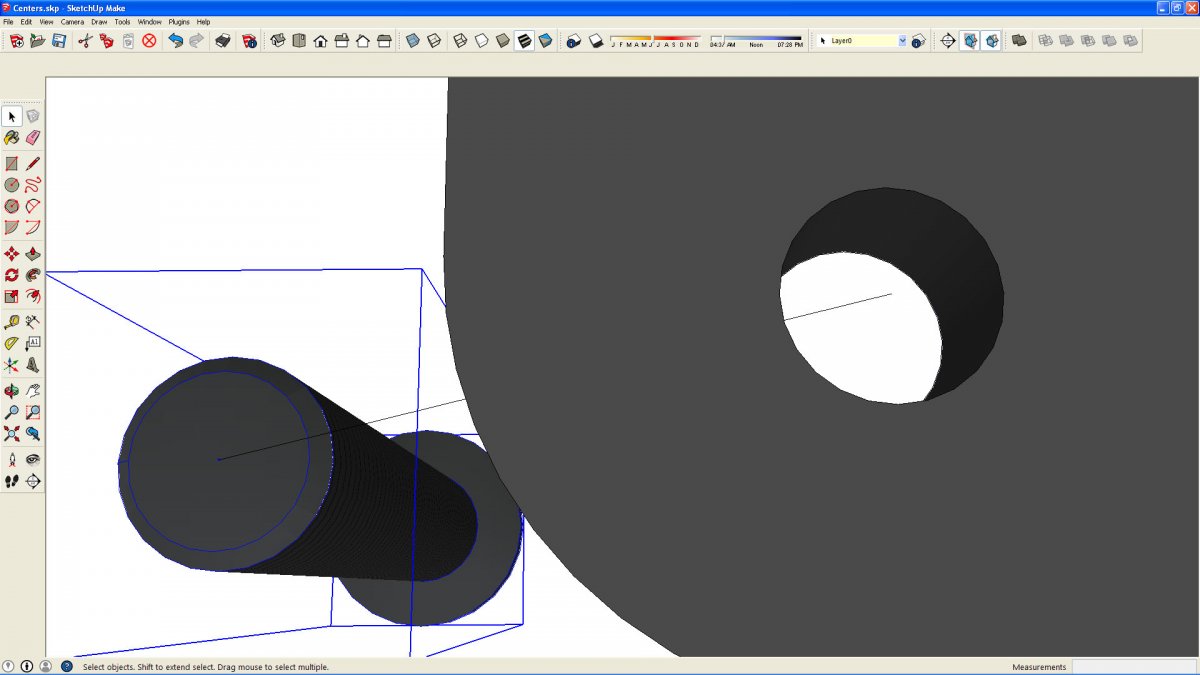

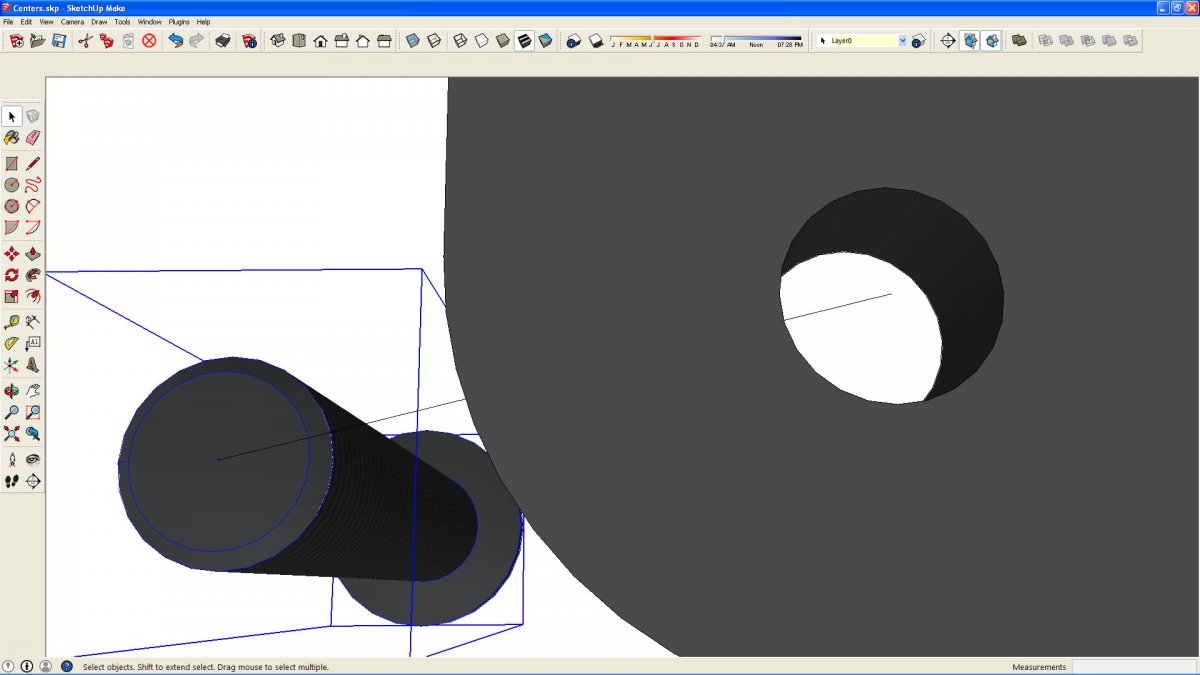

    The next step is optional but you'll find moves of this type easier when you draw a line between the two points.

    Step 3.jpg

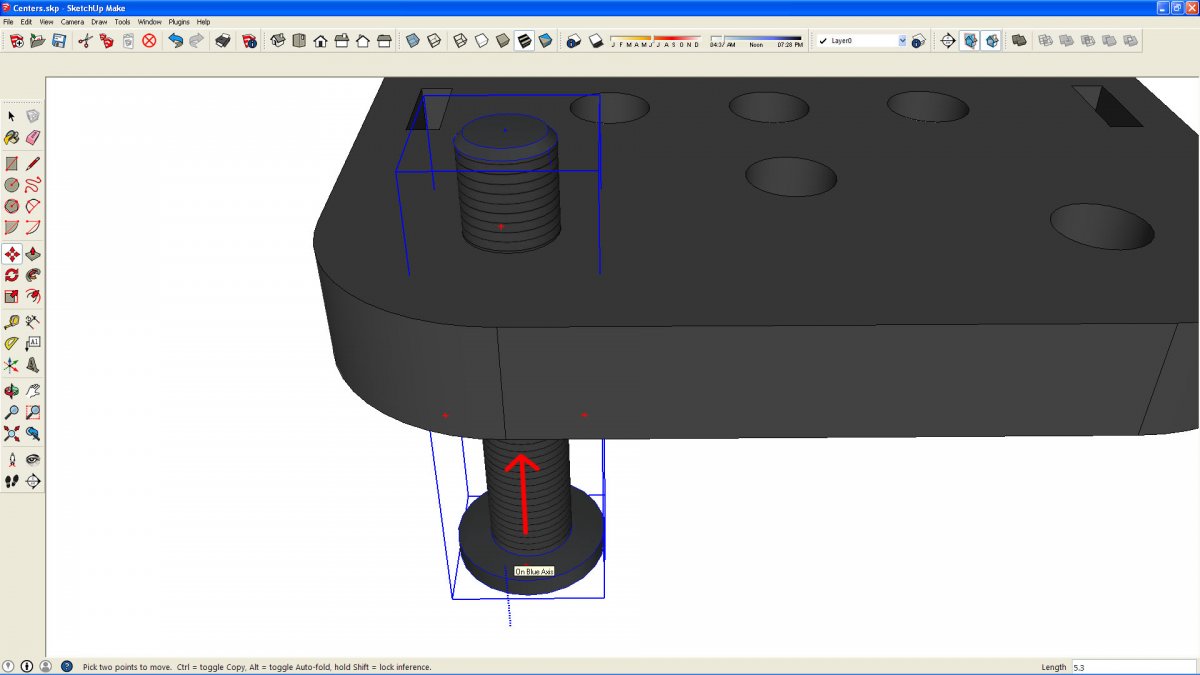

    Once you have the screw centered in the hole, simply move it up to where it needs to be. I generally grip the inside face of the screw head and slide it up to the mating face.

    Step 4.jpg

  6. Kyo

    Kyo Master
    Staff Member Resident Builder Builder

    Joined:
    Feb 27, 2014
    Messages:
    619
    Likes Received:
    537
    Exactly, Thanks for adding the example photos. :thumbsup:

  7. Rick 2.0

    Rick 2.0 OpenBuilds Team
    Staff Member Moderator Builder

    Joined:
    Dec 20, 2013
    Messages:
    1,506
    Likes Received:
    625
    I was halfway through creating them when you posted. ;)

  8. Alexander Boje Lassen

    Builder

    Joined:
    Jun 18, 2016
    Messages:
    4
    Likes Received:
    1
    Thank you! I certainly try again when I have drawn up some sketches.

  9. Alexander Boje Lassen

    Builder

    Joined:
    Jun 18, 2016
    Messages:
    4
    Likes Received:
    1
    Thank you! It has been very hard for me to find someone that really a explains it well. And for the sketches, I have used this method before, especially for boat building. I will try this now. Btw is there a bracket for mounting a gantry plate directly on a v slot?

  10. crispin

    crispin Well-Known
    Builder

    Joined:
    Jun 21, 2016
    Messages:
    28
    Likes Received:
    4
    Start with the same template style so the units match and then perhaps lower Precision and increase length snapping found not in Preferences but just underneath in Model Info o_O
    --> Window
    --> Model Info
    --> Units​

  11. crispin

    crispin Well-Known
    Builder

    Joined:
    Jun 21, 2016
    Messages:
    28
    Likes Received:
    4
    Sketchup often gets weird when moving an object in more than one axis at a time, seems easier to just move objects in one direction and then the next. Turn off perspective and work in plan view to eliminate an axis. You can always fine-tune the distance after any move by typing the required value before you make another selection.

  12. Julius

    Julius Veteran
    Builder

    Joined:
    Nov 13, 2015
    Messages:
    188
    Likes Received:
    53
    if you click move, then an arrow key you will love the object to one axis. Put a screw with its wheel and all the washers into one component, then you can copy/paste them easily.

    crispin likes this.
  13. Ronald van Arkel

    Staff Member Resident Builder Builder

    Joined:
    May 7, 2014
    Messages:
    469
    Likes Received:
    233
    Now, if you want to draw something a bit more precise, use circles that are made out of 96 segments and not 24. Also draw all at a 100x scale (100:1) as you will find that Sketchup hates to use anything smaller than 1.

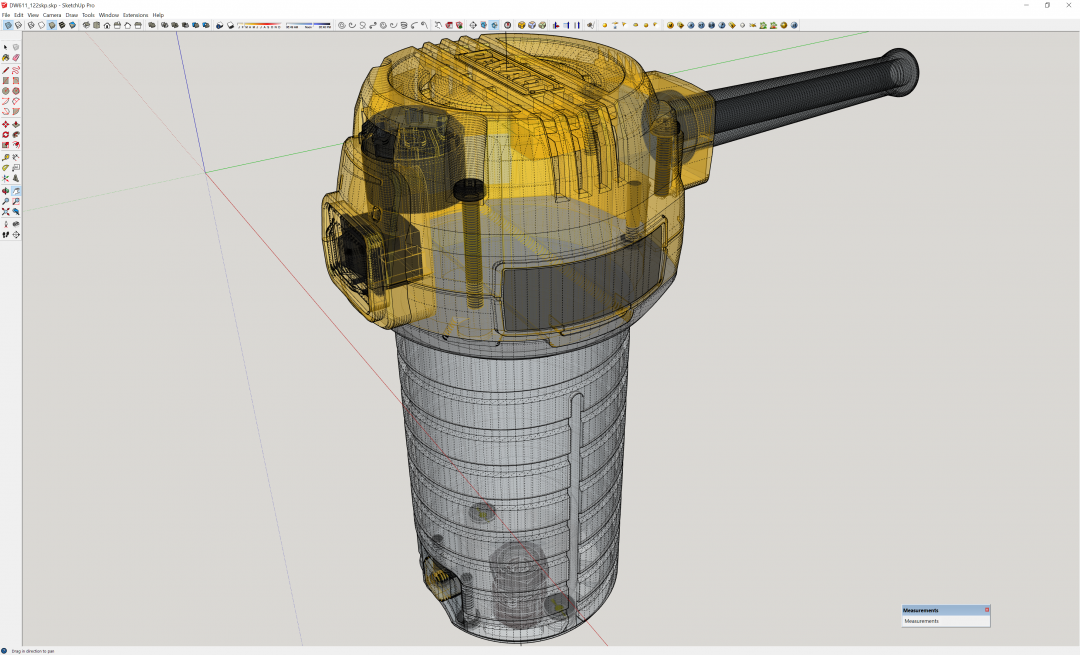

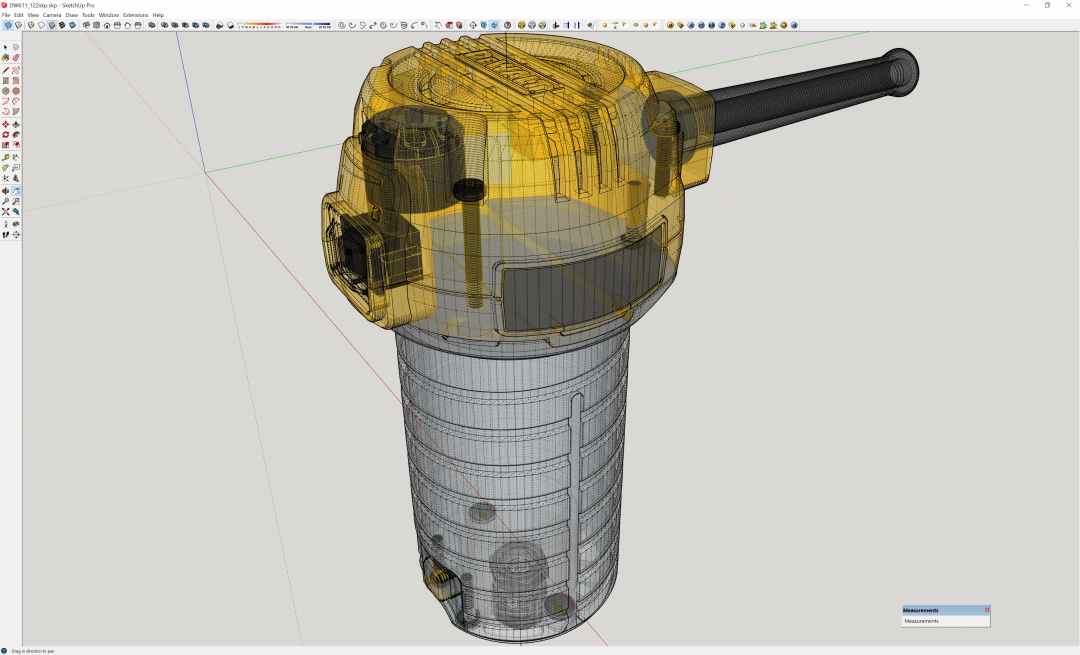

    Note that SketchUp is vertex/polygon based and not polylines (splines) so drawings might look a bit square. Still it's a great program if you take the time to draw. I've been doing complex meshes like the DeWalt 611 router in 3 weeks and a few days, 8 hours a day (just the shell, +/- 0.3mm):


    And it's my fault that not all object in the warehouse have the center point. but, you can show hidden geometry and use the 12 o clock vertex on the circle of the screw and snap that to the 12 o clock vertex on the circle as an example. This is how I do it ;). Future releases of the SketchUp files might have the center point but a date is not set.

    -Ronald

    #13 Ronald van Arkel, Aug 25, 2016
    Last edited: Aug 25, 2016
    crispin, Kyo and Giarc like this.
  14. Giarc

    Giarc Master
    Builder

    Joined:
    Jan 24, 2015
    Messages:
    569
    Likes Received:
    269
    That is a beautiful drawing! In your spare time, you should do the Makita.:D

  15. Ronald van Arkel

    Staff Member Resident Builder Builder

    Joined:
    May 7, 2014
    Messages:
    469
    Likes Received:
    233
    Thank you :thumbsup:.

    SketchUp can be a pain, especially if you want the objects to be a good mesh. And that's the thing, there is no spare time :cry:. I also said to myself: "Never again!". The Makita looks easier, the Bosch is hell too. I thought about doing the DeWalt 661 but naa, I'll better build a machine and make a picture of it :D. Drawing stuff like this compares to reverse engineering as it is all curved surface, in other words it's trail en error till you get it right and it's never right the first time... o_O

    -Ronald

    crispin and Giarc like this.
