Discussion in 'CNC Mills/Routers' started by andrew Adsit, Feb 20, 2015.

OX Cable Management, Electronics Case, E-Stops

OX Cable Management, Electronics Case, E-Stops

Discussion in 'CNC Mills/Routers' started by andrew Adsit, Feb 20, 2015.

750mm x 750mm OX build, xPro V2 controller, 400W Spindle with PWM controller.

cable management limit switches flexibility.
  1. andrew Adsit

    andrew Adsit New
    Builder

    Joined:
    Jan 27, 2015
    Messages:
    27
    Likes Received:
    20
    andrew Adsit published a new build:

    Read more about this build...

    #1 andrew Adsit, Feb 20, 2015
    GrayUK likes this.
  2. sgspenceley

    sgspenceley Veteran
    Builder

    Joined:
    May 27, 2014
    Messages:
    249
    Likes Received:
    292
    Andrew very nice ideas and installation on cable management!
    What type of connectors are you using? Do you have a supplier link?

    #2 sgspenceley, Feb 20, 2015
  3. andrew Adsit

    andrew Adsit New
    Builder

    Joined:
    Jan 27, 2015
    Messages:
    27
    Likes Received:
    20
    I added a link to my list on Amazon with a lot of the parts I used, including the connectors. Some items out of stock, so you may have to shop around on Amazon.

    #3 andrew Adsit, Feb 20, 2015
    Last edited: Feb 20, 2015
  4. sgspenceley

    sgspenceley Veteran
    Builder

    Joined:
    May 27, 2014
    Messages:
    249
    Likes Received:
    292
    Thank you Andrew...

    #4 sgspenceley, Feb 21, 2015
  5. Nick W

    Nick W Well-Known
    Builder

    Joined:
    Oct 22, 2014
    Messages:
    99
    Likes Received:
    61
    Thanks for the info. I just placed an order for those connectors. I have been thinking of how I was going to the wiring.

    #5 Nick W, Feb 21, 2015
  6. ChadRat6458

    ChadRat6458 New
    Builder

    Joined:
    Dec 10, 2014
    Messages:
    93
    Likes Received:
    24
    Looks real good. I am about to make a box for my controller and switches. I was thinking about mounting the power supply in the same box. Where are you mounting yours? Thanks.

    #6 ChadRat6458, Feb 26, 2015
  7. Nick W

    Nick W Well-Known
    Builder

    Joined:
    Oct 22, 2014
    Messages:
    99
    Likes Received:
    61
    I'm at the same point in my design. I have a few enclosure that can hold all the electronics except the power supplies. I would like to have them all in the same box for simplicity. My current thought is to make something temporary so I can run the OX so it can make a more permanent solution.

    #7 Nick W, Feb 26, 2015
  8. andrew Adsit

    andrew Adsit New
    Builder

    Joined:
    Jan 27, 2015
    Messages:
    27
    Likes Received:
    20
    I built a shelf under the table for the power supplies (I use one for the OX and one just for the spinde. I am currently building my button box which will integrate the pi and a 3.5 touch display, the emergency off button and the run/resume and the pause button. Pictures tonight.

    I didn't want the power supplies in the boxes for 1) modularity and 2) heat.

    #8 andrew Adsit, Feb 26, 2015
  9. spark2

    spark2 New
    Builder

    Joined:
    Apr 9, 2014
    Messages:
    7
    Likes Received:
    6
    Hi Andrew. Really Nice Wire Management. I got a Question. How did you connect the Aluminium-Block of the Spindle with the Z-Axis? That would be interesting for my CNC Build. Thanks for your Help.

    #9 spark2, Mar 12, 2015
  10. andrew Adsit

    andrew Adsit New
    Builder

    Joined:
    Jan 27, 2015
    Messages:
    27
    Likes Received:
    20

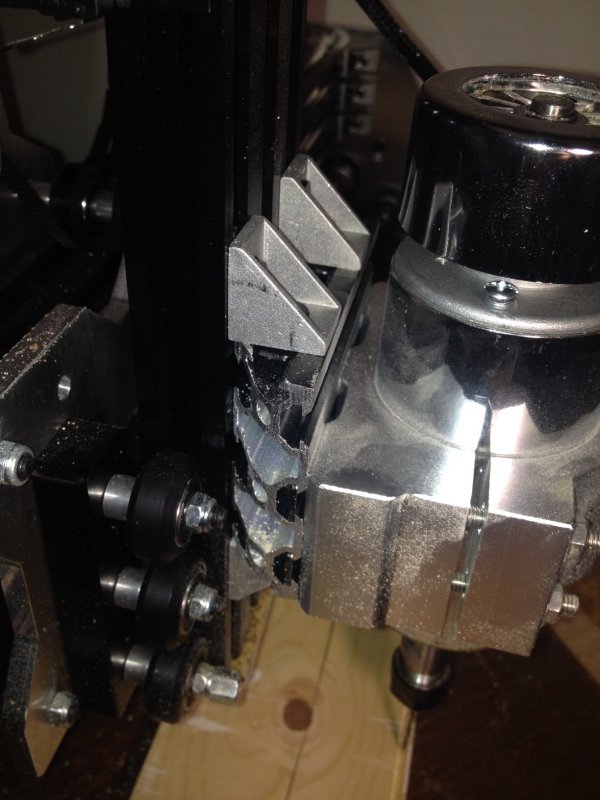

    I used a short piece of 20x60 turned 90 degrees. I had to bevel the cut to avoid the wheel nuts, but the al block holes were a perfect match. Them I used 4 pieces of 5mm all thread cut to length with t-nuts in the 20x60 and regular nuts on the top. I'll post a pic in a few.

    #10 andrew Adsit, Mar 12, 2015
  11. spark2

    spark2 New
    Builder

    Joined:
    Apr 9, 2014
    Messages:
    7
    Likes Received:
    6
    thanks for your Answer. It would be great to see a Pic with your Solution, so i can imagine better. Thanks for your Help.

    #11 spark2, Mar 12, 2015
  12. andrew Adsit

    andrew Adsit New
    Builder

    Joined:
    Jan 27, 2015
    Messages:
    27
    Likes Received:
    20


    Attached Files:

    #12 andrew Adsit, Mar 12, 2015
    Nick W likes this.
  13. spark2

    spark2 New
    Builder

    Joined:
    Apr 9, 2014
    Messages:
    7
    Likes Received:
    6
    thanks for your effort. good idea how u fixed it.

    #13 spark2, Mar 12, 2015
  14. CASTELLINI

    CASTELLINI New
    Builder

    Joined:
    Nov 23, 2015
    Messages:
    5
    Likes Received:
    0
    Hello Andrew,

    Could you tell me what's your max Z axis travel please ?

    Thanks
    Adrien

    #14 CASTELLINI, Nov 23, 2015
  15. azarock

    azarock New
    Builder

    Joined:
    Oct 11, 2015
    Messages:
    21
    Likes Received:
    5
    Looks like a great build. :thumbsup:

    #15 azarock, Nov 23, 2015
  16. andrew Adsit

    andrew Adsit New
    Builder

    Joined:
    Jan 27, 2015
    Messages:
    27
    Likes Received:
    20
    With a 1" bit, almost 50mm with my standard waste board. If I remove it and use the board below it, I get another 60mm. So far, it has been enough, but if I wanted to do any relief carving, I would probably have to raise the y rails.

    #16 andrew Adsit, Nov 24, 2015
