Fushion 360 users

Discussion in 'CAD' started by Barry Danks, Sep 21, 2017.

  1. Barry Danks

    Barry Danks Veteran
    Builder

    Joined:
    Apr 21, 2016
    Messages:
    106
    Likes Received:
    34
    Hey how do I put 3 holes 120deg apart on a circle.
    Thanks in advanced

  2. Joe Santarsiero

    Joe Santarsiero OB addict
    Staff Member Moderator Builder

    Joined:
    Oct 30, 2014
    Messages:
    854
    Likes Received:
    181
    A few ways to do this. One way is to extrude circle. new sketch the hole circle. cut hole using extrude. Then under create select pattern then circular.
    In the circular pattern dialog choose features for pattern type, select the hole you cut(use the time frame), select the axis of the disk you are cutting, quantity 3.

  3. JustinTime

    JustinTime Master
    Builder

    Joined:
    Dec 18, 2013
    Messages:
    36
    Likes Received:
    6
    There is also an option to make holes in Fusion. I can't recall the exact procedure, i don't have Fusion on my new computer, but it's one of the menu options.

  4. Barry Danks

    Barry Danks Veteran
    Builder

    Joined:
    Apr 21, 2016
    Messages:
    106
    Likes Received:
    34
    Been doing cad for years but my first drawings with any 3d software. Thanks a bunch

    #4 Barry Danks, Sep 22, 2017
    Last edited: Sep 22, 2017
  5. Barry Danks

    Barry Danks Veteran
    Builder

    Joined:
    Apr 21, 2016
    Messages:
    106
    Likes Received:
    34

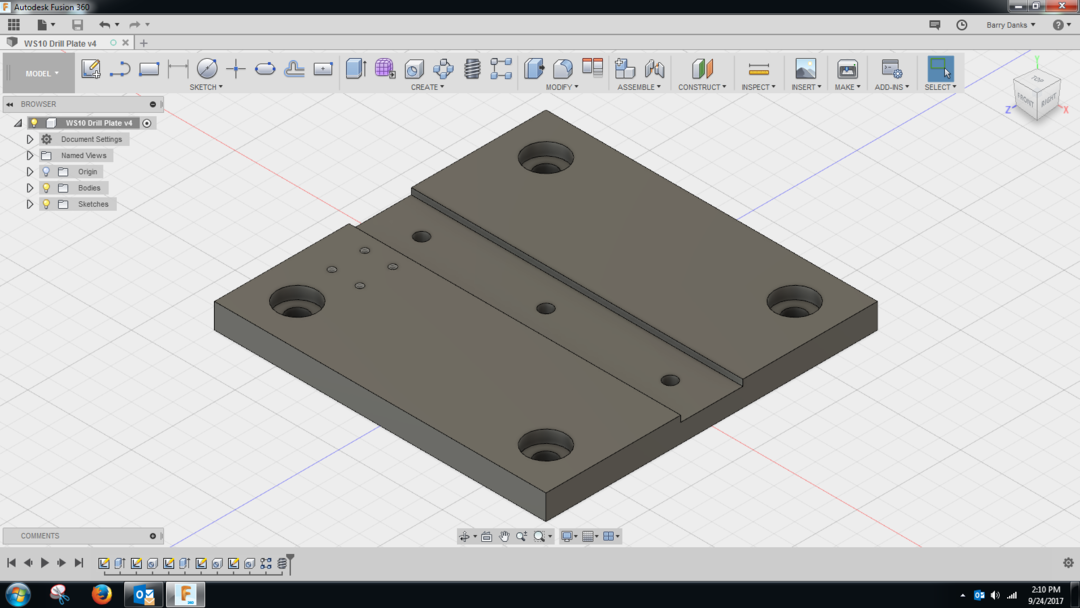

    Any ideas why it won't thread this hole?

  6. Joe Santarsiero

    Joe Santarsiero OB addict
    Staff Member Moderator Builder

    Joined:
    Oct 30, 2014
    Messages:
    854
    Likes Received:
    181
    Does it run into the front hole? It might not like that. Uncheck full length and try a depth to see if this is the case.

  7. Barry Danks

    Barry Danks Veteran
    Builder

    Joined:
    Apr 21, 2016
    Messages:
    106
    Likes Received:
    34
    Thanks again

  8. Barry Danks

    Barry Danks Veteran
    Builder

    Joined:
    Apr 21, 2016
    Messages:
    106
    Likes Received:
    34

    Need more assistance guys I Looked for tutorials on moving the group of 4 small threaded holes and also copying to the other.
    side.
    Thanks very much in advanced

  9. Joe Santarsiero

    Joe Santarsiero OB addict
    Staff Member Moderator Builder

    Joined:
    Oct 30, 2014
    Messages:
    854
    Likes Received:
    181
    I could tell you how to do this off the top of my head for SW, but not fusion. I'll try though.

    To move the existing hole pattern you just find and edit the sketch of the holes. To make a pattern on the same plane you can either pattern the holes in the sketch or pattern the feature out of sketch. To duplicate everything on the bottom of the part you select extrude cut, select the same sketch again, select extrude from, and choose the bottom surface.

  10. Barry Danks

    Barry Danks Veteran
    Builder

    Joined:
    Apr 21, 2016
    Messages:
    106
    Likes Received:
    34
    Anyone else ever have issues exporting a dxf file. I've watched a couple of tutorials and pretty sure I'm doing it right, but I cant open the dxf

  11. Barry Danks

    Barry Danks Veteran
    Builder

    Joined:
    Apr 21, 2016
    Messages:
    106
    Likes Received:
    34
    Banging head on desk....Why? lol

  12. David the swarfer

    David the swarfer OpenBuilds Team
    Staff Member Moderator Builder

    Joined:
    Aug 6, 2013
    Messages:
    798
    Likes Received:
    362
    Fusion is an odd beasty (to me anyway) but once you 'get it' it is simple enough.
    The key is that you do most stuff by doing a 2D sketch first, then extruding that to 3D.

    You should watch these....

  13. Barry Danks

    Barry Danks Veteran
    Builder

    Joined:
    Apr 21, 2016
    Messages:
    106
    Likes Received:
    34
    Yes awesome videos

  14. Barry Danks

    Barry Danks Veteran
    Builder

    Joined:
    Apr 21, 2016
    Messages:
    106
    Likes Received:
    34

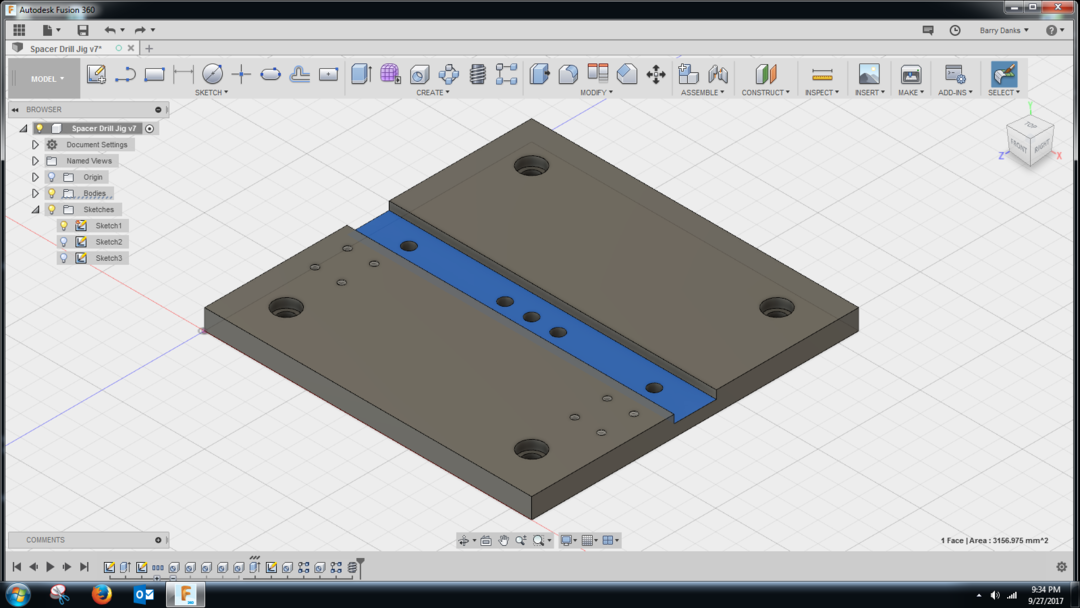

    Any ideas how to make this slot wider?

  15. Joe Santarsiero

    Joe Santarsiero OB addict
    Staff Member Moderator Builder

    Joined:
    Oct 30, 2014
    Messages:
    854
    Likes Received:
    181
    Find the sketch or feature that made it that wide Barry! You need to have more confidence in yourself sir. lol
