Discussion in 'CNC Mills/Routers' started by Robert Hummel, Feb 3, 2014.

  1. João Fernandes

    Builder

    Joined:
    Oct 27, 2014
    Messages:
    6
    Likes Received:
    0
    Hello Robert.

    The file you are talking about is the "OX AI.zip" that's on the "File Tab"?
    If so, is there any way to see when that file is updated?

    Thanks :)

  2. daniel lopez hernandez

    Builder

    Joined:
    Nov 10, 2014
    Messages:
    2
    Likes Received:
    0
    Hi robert !!! Could you send to my email ( [email protected] ) the cost of the 4 plates.

    The shipping goes to 5418 NW 79th Ave Doral, Fl 33166

  3. Custom Builder

    Builder

    Joined:
    Nov 29, 2014
    Messages:
    5
    Likes Received:
    4
    This is Robert Hummel

    My account is no longer working on the OB forum, I have done all I can from my side but it seems my log in info has bin removed :eek:

    For anyone who has ordered kits you will be happy to know your orders are on their way :thumbsup:

    Outstanding payments that need to clear, the kits will ship as soon as I get confirmation of payment.

    For any other contact with me feel free to PM this account ;)

  4. GrayUK

    GrayUK Openbuilds Team Elder
    Staff Member Moderator Builder

    Joined:
    May 5, 2014
    Messages:
    1,669
    Likes Received:
    617
    This Graham Sinclair

    You must have been sold to the highest bidder! :D

    We only offered £5, cause that is all we could get for you! :rolleyes:

    Come on Mark, let the poor guy back in.
    I'm sure he'll behave himself in the future! :thumbsup::thumbsup:

    Gray

    Custom Builder likes this.
  5. Custom Builder

    Builder

    Joined:
    Nov 29, 2014
    Messages:
    5
    Likes Received:
    4
    I have two four plate sets that simply require a light sanding to clean up the scuffs from scotch pads.

    This is a chance for someone to save some cash

    I will pack them up and post when ready to ship.

    One kit is also being finished and then will be posted

    After that no more plate service over OB, sorry the greedy have ruined that big time.

    Mark bud, I feel for you and apologize if this matter was a result of shady competition, think someone is a little upset

  6. Robert Hummel

    Robert Hummel Custom Builder
    Staff Member Moderator Builder

    Joined:
    Nov 14, 2013
    Messages:
    978
    Likes Received:
    701
    I have my account back, thank you bud! @kram242
    I have some choice words I will keep to myself about the scum messing with OB

    DiggerJ likes this.
  7. dddman

    dddman Journeyman
    Builder

    Joined:
    Mar 2, 2014
    Messages:
    468
    Likes Received:
    185
    Welcome back! :)

  8. Robert Hummel

    Robert Hummel Custom Builder
    Staff Member Moderator Builder

    Joined:
    Nov 14, 2013
    Messages:
    978
    Likes Received:
    701
    The two 4 plate sets that require a light sanding are packed and ready
    PM me for info on price and shipping

  9. Robert Hummel

    Robert Hummel Custom Builder
    Staff Member Moderator Builder

    Joined:
    Nov 14, 2013
    Messages:
    978
    Likes Received:
    701
    Ty my friend, as per our conversation on Facebook I think I can swing the custom heat bed for our Deltas and believe 250mm would be the perfect fit :)

  10. GrayUK

    GrayUK Openbuilds Team Elder
    Staff Member Moderator Builder

    Joined:
    May 5, 2014
    Messages:
    1,669
    Likes Received:
    617
    Glad you are back my friend. :thumbsup::thumbsup::thumbsup:

    Gray

  11. Robert Hummel

    Robert Hummel Custom Builder
    Staff Member Moderator Builder

    Joined:
    Nov 14, 2013
    Messages:
    978
    Likes Received:
    701
    Since the last two" light sanding needed" four plate sets went so fast
    I have made 3 more.
    PM for info ;)

  12. DiggerJ

    DiggerJ Journeyman
    Builder

    Joined:
    Sep 2, 2014
    Messages:
    412
    Likes Received:
    109
    Got any Yaxis end plates laying around with your belt attacment system on them? I gotta take mine apart, and think they might work better than the T-nut attachment system

  13. Robert Hummel

    Robert Hummel Custom Builder
    Staff Member Moderator Builder

    Joined:
    Nov 14, 2013
    Messages:
    978
    Likes Received:
    701
    Yes I do my friend, they need a light sanding and belt clips milled, I have kit I'm finishing up that someone backed out of due to financial issues so I will mill the clips tomorrow and pack them up while I finish the kit

    I have bin real busy tweaking my OX AI files and working on my Delta.
    Finished up the files
    "fully compatable with OB parts"
    I will be putting them in order and tagging them as version 1.2 for future reff and posting them in the files section of my build

    Here's a pic of what my Delta is looking like, need a few more parts from OB and the Fiber OX will be cutting the cork for my heatbed :)


    Nick W, Hytech2k and mybuild14 like this.
  14. DiggerJ

    DiggerJ Journeyman
    Builder

    Joined:
    Sep 2, 2014
    Messages:
    412
    Likes Received:
    109
    I got my steppers and 20x40 V-slot yesterday. Are you milling carriage plates for the 20x40? I am starting to print part today and am starting with the carriage template and vertices. We are going magnetic counterbored pucks with ball bearing ended rods.

    What is the size of your Delta frame?

  15. Robert Hummel

    Robert Hummel Custom Builder
    Staff Member Moderator Builder

    Joined:
    Nov 14, 2013
    Messages:
    978
    Likes Received:
    701
    Yes me and dddman are working together on a version of the Delta 6 build.
    My horizontal 20x40 is 300mm long, Vertical are 680mm leaving 600mm between vertex
    I designed carriage plates to match the plastic parts, tested and made adjustments in turn dddman adjusted the printed parts.
    The end result is this :)
    I must say dddman has got some printing skills

  16. DiggerJ

    DiggerJ Journeyman
    Builder

    Joined:
    Sep 2, 2014
    Messages:
    412
    Likes Received:
    109
    I agree. He does have skills. I need to modify the Infill3d magnetic carriage files to match that size carrier plate.

    We are going a very similar direction, but I really like the movement of the BerryBot. I figure I will start with the harder one, and can always come back to bolt-ons. Let me know if you are selling those carriage plates. I have the wheels and everything else in stock.

    Check these:
    http://www.thingiverse.com/thing:496689
    http://www.thingiverse.com/thing:501250
    http://www.thingiverse.com/thing:494853

  17. Robert Hummel

    Robert Hummel Custom Builder
    Staff Member Moderator Builder

    Joined:
    Nov 14, 2013
    Messages:
    978
    Likes Received:
    701
    Here is a shot of me test fitting the acrylic shield/brace

    Jestah, mybuild14, Steve123 and 2 others like this.
  18. DiggerJ

    DiggerJ Journeyman
    Builder

    Joined:
    Sep 2, 2014
    Messages:
    412
    Likes Received:
    109
    Very slick! I thought about something like this with a ledge over the edge just a smidge. Then puttin a slitted cover over the top slott
    that would fold away as the carriage passed by it. As it passed, it would fold back down. Blocking the dust while down, pushing it away while folding back as the gantry went by.

  19. sgspenceley

    sgspenceley Journeyman
    Builder

    Joined:
    May 27, 2014
    Messages:
    250
    Likes Received:
    275
    I read every post tonight, it was awesome to see a side business grow, so quickly. It really shows when a true artist and craftsmen produces something special customers buy from all over the world.

    I love the work you have produced. I'm a newbie here but started my inspired Robert aluminum OX build. Thank you Mark for such a wonderful design and forum.

    Thank you for the inspiration...
    Steve

    #409 sgspenceley, Dec 9, 2014
    Last edited: Dec 9, 2014
    Robert Hummel and GrayUK like this.
  20. Robert Hummel

    Robert Hummel Custom Builder
    Staff Member Moderator Builder

    Joined:
    Nov 14, 2013
    Messages:
    978
    Likes Received:
    701
    One side done, gotta get some more hardware before I can do the other

  21. Robert Hummel

    Robert Hummel Custom Builder
    Staff Member Moderator Builder

    Joined:
    Nov 14, 2013
    Messages:
    978
    Likes Received:
    701
    Both sides done and wow what a difference in the way the wheels run.
    Having the inside support really helps keep the wheels squared in the v-slot

  22. Hytech2k

    Hytech2k Veteran
    Builder

    Joined:
    May 6, 2014
    Messages:
    429
    Likes Received:
    321
    Looks good !

  23. mybuild14

    mybuild14 New
    Builder

    Joined:
    Mar 20, 2014
    Messages:
    23
    Likes Received:
    5
    Looks great Robert. Are you going to post the acrylic shield/brace files? I sure would like to take a stab at cutting some when my OX is up and running. Thanks to you and everyone for the great additions to the original OX.
    Dave (MYBUILD14)

  24. GrayUK

    GrayUK Openbuilds Team Elder
    Staff Member Moderator Builder

    Joined:
    May 5, 2014
    Messages:
    1,669
    Likes Received:
    617
    Hi Robert.

    I'm interested to hear these help to stabilise the wheels. Would you make that a standard fixture now? They look good, but your stuff always does!!

    Do you think if, from the top, to say 20mm below the wheels, it were to protrude each way along the "Y", almost forming a "T", and allowing it to ride over the end support aluminium strips at each end, it would give even greater protection to the belt from the dust etc?

    Just a thought.
    Gray

  25. pmany

    pmany New
    Builder

    Joined:
    Nov 24, 2014
    Messages:
    35
    Likes Received:
    6
    Or something like the attached, just a quick creation in Sketchup for demo of idea. This would allow cross pieces to have more support of Y in the middle of the "C". It would not be as strong for the wheel support, but what you lose in support you should make up for in less deflection of Y.

    I had been contemplating making something like this that would have horizontal wheels also....


    Attached Files:

  26. Robert Hummel

    Robert Hummel Custom Builder
    Staff Member Moderator Builder

    Joined:
    Nov 14, 2013
    Messages:
    978
    Likes Received:
    701
    Yes the files will be released as a full zip with all files to reproduce the OX AI :)
    it helps loads with alignment, as to your idea I kinda get it but a picture is worth a ton load of words :)

  27. Robert Hummel

    Robert Hummel Custom Builder
    Staff Member Moderator Builder

    Joined:
    Nov 14, 2013
    Messages:
    978
    Likes Received:
    701

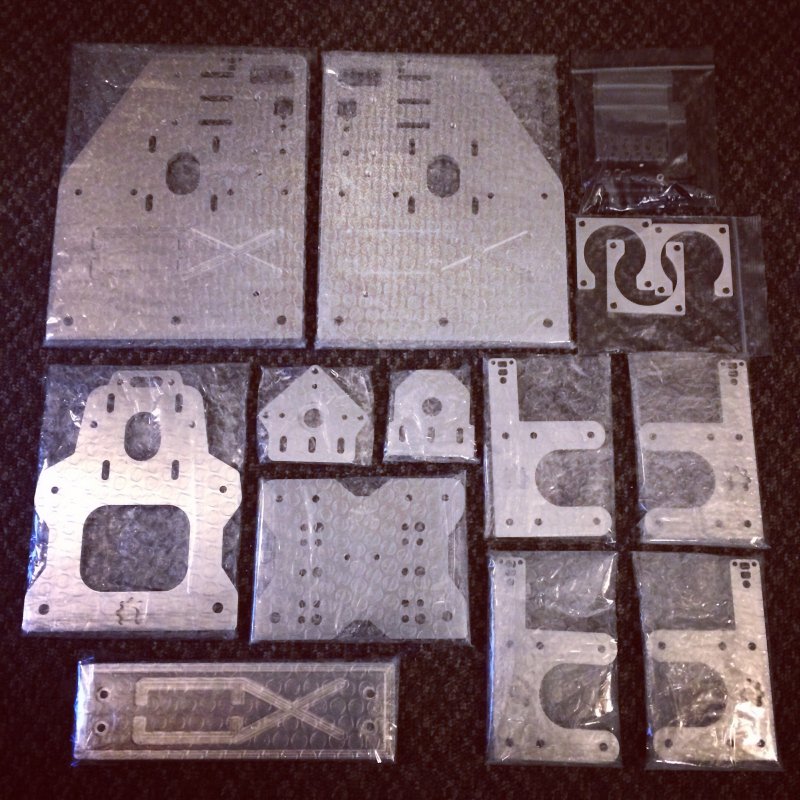

    Most up to date version OX kit ready!
    First come first serve ;)
    Packing it up now
    Contents
    4 x Custom Main plates
    4 x Custom ends plates
    2 x Custom Z plates "universal NEMA17-23"
    3 x Nema23 spacers
    1 x Name plate/brace
    4 x M5x70 bolts
    2 x 608z bearings
    6 x Belt clips
    12 x M3 hardware for belt clips
    4 x Tie strap clips

    Mopar32985 likes this.
  28. Nick W

    Nick W Well-Known
    Project Maker Builder

    Joined:
    Oct 22, 2014
    Messages:
    100
    Likes Received:
    60
    Message sent.

  29. Robert Hummel

    Robert Hummel Custom Builder
    Staff Member Moderator Builder

    Joined:
    Nov 14, 2013
    Messages:
    978
    Likes Received:
    701
    Update!

    Kit has sold, more will come :)

    Jestah and Nick W like this.
  30. Jestah

    Jestah Well-Known
    Builder

    Joined:
    Dec 4, 2013
    Messages:
    148
    Likes Received:
    83
    @Robert Hummel , Did you run double Excentrics on each lower wheel?

    If so do you need to use two different spanners to shnug them up at the same time?
