OpenBuilds OX CNC Machine

Discussion in 'CNC Mills/Routers' started by Mark Carew, Dec 15, 2013.

  1. dddman

    dddman Journeyman
    Builder

    Joined:
    Mar 2, 2014
    Messages:
    468
    Likes Received:
    187
    It might be the flex of your CNC, try to do a finish pass after your cut (or cut the pocket a second time) to verify if it is better.

  2. David the swarfer

    David the swarfer OpenBuilds Team
    Staff Member Moderator Builder Resident Builder

    Joined:
    Aug 6, 2013
    Messages:
    1,984
    Likes Received:
    1,096
    Firstly, have you measured your cutting bit? If you don't use the actual bit size in the CAM, you will not get the correct size cut.
    2nd, what direction are you cutting? conventional cutting will tend to cut small (around outside), climb milling will tend to cut large.
    3rd, slotting is the absolutely perfect way to get an overly wide slot (the bit pulls itself to the left), this means that the extra gap must come from somewhere, in this case, off the size of your part. Best is to do a slot with 'stock to leave' and then do a finish pass.
    4th, have you calibrated the machine? HOWTO Calibrate your CNC Machine for MACH3 or GRBL
    5th, are the belts tight enough?
    6th, are you sure you actually did the CAM programming correctly? all too easy to miss a setting and not get what you expected (-: I don't know Aspire, and I have only just started using Fusion360 which has hundreds of settings, wow.

    You can check the Gcode, to cut inside a 40x40 square the actual movement is 40-bitdiameter. So you should see a difference of exactly that much between the start and end of a cut along the edge of the 40x40 pocket.

    Mark Carew likes this.
  3. Lstj

    Lstj New
    Builder

    Joined:
    Sep 24, 2015
    Messages:
    15
    Likes Received:
    0
    calibrate machine no problem
    profile toolpath no problem
    just pocket toolpath can't accurate

  4. David the swarfer

    David the swarfer OpenBuilds Team
    Staff Member Moderator Builder Resident Builder

    Joined:
    Aug 6, 2013
    Messages:
    1,984
    Likes Received:
    1,096
    Please post the gcode file here.

  5. Lstj

    Lstj New
    Builder

    Joined:
    Sep 24, 2015
    Messages:
    15
    Likes Received:
    0

  6. David the swarfer

    David the swarfer OpenBuilds Team
    Staff Member Moderator Builder Resident Builder

    Joined:
    Aug 6, 2013
    Messages:
    1,984
    Likes Received:
    1,096

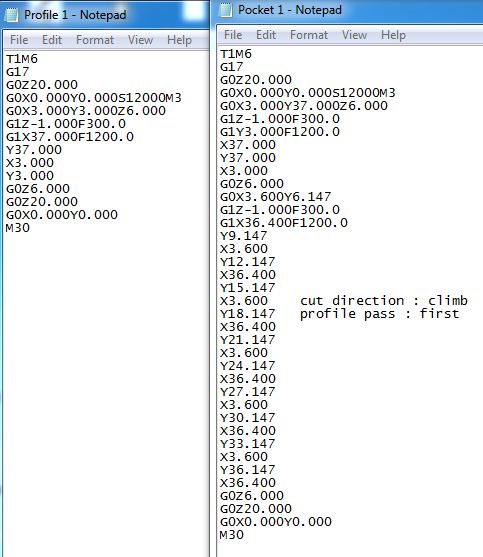

    um, pictures of the file, well, I cannot run those through a simulator, can I?
    please attach the actual Gcode file

  7. Biglouie

    Biglouie New
    Builder

    Joined:
    Apr 8, 2017
    Messages:
    11
    Likes Received:
    2
    First post, so thought I'd drop in the Ooznest thread. Ive bought the kit from Ryan and have built it over the last few evenings. Great, quick support from Ryan when needed, can recommend using Ooznest if youre in the UK.

    N00b question..Just how "loose" should the X & Y mounts be when installed without motors.. Should you be able to push them away and watch them roll or should they stop when you stop moving them?

    My set up is running ok for a first attempt, I think. Drawing things with Sharpies is fun, but I do get a fair bit of noise on the Y axis (wondering if belts or wheels are too tight) and I see a fair bit of vibration up on the X motor when its doing shorter steps, the whole Z assembly vibrates.

    And I'm keen to understand wheere the Ferite motor shields are best placed, havent found that out yet!

    Any tips for watch outs much appreciated. I've only read through 83 pages of this thread so far. :)

    Looking forward to learning from everyone here and finding out how CNC is going to help me make more arcade machines!

    Rob

  8. David the swarfer

    David the swarfer OpenBuilds Team
    Staff Member Moderator Builder Resident Builder

    Joined:
    Aug 6, 2013
    Messages:
    1,984
    Likes Received:
    1,096
    You want to go back and watch the OX build videos where Mark explains at length how tight to make the wheels.

  9. Ryan Lock

    Ryan Lock Veteran
    Builder

    Joined:
    Oct 12, 2014
    Messages:
    530
    Likes Received:
    284
    I usually say that when you turn each wheel you want it the point where you want some friction to be there.

    Regarding the noise, this could be due to the xPro, they now come defaulted in Mixed decay mode, but fast decay mode does make the motors run smoother.

    Ryan

  10. Jim Chadwick

    Builder

    Joined:
    Apr 8, 2016
    Messages:
    5
    Likes Received:
    1
    First I would like to add my recommendation to yours for Ooznest in the UK. They have been a great help to me too, sorting out a few issues. Many thanks to them.
    Adjusting the X & Y mounts. I've found the best way is to use a finger method on every wheel. Using two fingers and a spanner to adjust the concentric nut, gently rock each wheel until you feel just a little friction as it touches the rail. By doing this you can make sure each mounting wheel has the same adjustment (feel) and that all the wheels are being used equally. Remember also the wheels are adjusted in pairs across the rail. Happy CNCing.

    Biglouie likes this.
  11. Biglouie

    Biglouie New
    Builder

    Joined:
    Apr 8, 2017
    Messages:
    11
    Likes Received:
    2
    Thanks Jim, this is exactly the way I have done it, makes sense to feel each one for tension.

    I want to put my xpro v3 setup with fast decay, to see the difference, but for the life of me, I cant find a good quality image or diagram of the jumper settings. I know its on the back of the card, but I cant really see that properly! (Too terrified to make mistakes with jumpers yet!)

    x x
    x x
    x x

    If thats the pins as I look at the card from the front with USB on the right, I am assuming its two jumpers across the bottom pins

    x x
    o o
    o o

    Any help much appreciated! I'm off to make a control box! :)

  12. Ryan Lock

    Ryan Lock Veteran
    Builder

    Joined:
    Oct 12, 2014
    Messages:
    530
    Likes Received:
    284
    Hi,

    On the v3, there is 3 columns 4 rows of jumpers all unsoldered. And when you take the board off the back it is pretty self explanatory what to do. I can't remember exactly off the top of my head, but i think it is the middle and left column you need to jumper each row on for fast decay.

    Best Regards

    Ryan Lock

    #3372 Ryan Lock, Jun 4, 2017
    Last edited: Jun 5, 2017
  13. Adam Filipowicz

    Adam Filipowicz Journeyman
    Builder

    Joined:
    Dec 21, 2014
    Messages:
    256
    Likes Received:
    124
    Curious why the Openbuilds Parts Store does not carry OX Plates

  14. Adam Filipowicz

    Adam Filipowicz Journeyman
    Builder

    Joined:
    Dec 21, 2014
    Messages:
    256
    Likes Received:
    124
    I get that ,but as long as there is an effort made to make it as universal as possible. whats the harm, its still using Openbuilds components to make it all move. is it really that different then the

    NEMA 23 Reduction / Stand Off Plate

    or the

    Build Plate


  15. Mark Carew

    Mark Carew OpenBuilds Team
    Staff Member Moderator Project Maker Builder Resident Builder

    Joined:
    Jun 28, 2013
    Messages:
    2,601
    Likes Received:
    2,162
    We do get a lot of Builders asking us this question and Grantman is correct in why we did not offer them at first. The good news is, if for nothing else we have decided to offer these plates as part of machine bundles to make it easier for Builders wanting to get them. So in time you should start see them available soon. :thumbsup:

    GrayUK and Adam Filipowicz like this.
  16. Kevin1971

    Kevin1971 New
    Builder

    Joined:
    Jun 22, 2017
    Messages:
    3
    Likes Received:
    0
    Was looking at the top of this post and there is a place that sales aluminum OX sides. Does anyone know if he still offers these and how much the shipping would be?
    Not much info in the site other than price seems kind sketchy

  17. Rick 2.0

    Rick 2.0 OpenBuilds Team
    Staff Member Moderator Builder Resident Builder

    Joined:
    Dec 20, 2013
    Messages:
    2,568
    Likes Received:
    1,306
    Best suggestion is to try here: Items in Blue Ox Solutions store on eBay!

  18. Ernest Sutherland

    Builder

    Joined:
    May 30, 2017
    Messages:
    17
    Likes Received:
    3
    Rick I have a little problem . I have a xpro v3 with nema 23 motors wired up. it is all on desk and not installed on my xlarge. when I test it out the cloned y motor keeps shutting down. I have adjusted current and nothing helps. any ideas?
    does not matter what one of my motors I put on cloned y it will not run long.

  19. Rick 2.0

    Rick 2.0 OpenBuilds Team
    Staff Member Moderator Builder Resident Builder

    Joined:
    Dec 20, 2013
    Messages:
    2,568
    Likes Received:
    1,306
    Sorry but not an expert on the Xpro boards. I would suggest however asking in the Controller Boards section of the forum where those who can offer help are more likely to find your question.

  20. TheMystical

    Builder

    Joined:
    Jun 18, 2017
    Messages:
    1
    Likes Received:
    0
    Hi everyone, I'm gonna build the 75x50 ox cnc, at the moment I got all the v-slot aluminum extrusions, I need to cut them to length however at the moment I'm restricted to my smartphone to browse the site and can't view the drawing files. I need the exact measurements for each rail, besides the 75 cm and the 50 cm rails what's the exact length of the other pieces ?

    Thanks a bunch.

  21. Rick 2.0

    Rick 2.0 OpenBuilds Team
    Staff Member Moderator Builder Resident Builder

    Joined:
    Dec 20, 2013
    Messages:
    2,568
    Likes Received:
    1,306
  22. ArtCAM User

    Builder

    Joined:
    Jul 10, 2017
    Messages:
    2
    Likes Received:
    1
    Hi @Mark Carew,
    Please let me know what post processor option you're using for your toolpaths in ArtCAM. I would like to know which post processor is compatible with the OpenBuilds OX machine, which is driven by the Spark Concepts Arduino xPro V2. Thank you very much for your help.

    #3382 ArtCAM User, Jul 10, 2017
    Last edited: Jul 10, 2017
  23. Mark Carew

    Mark Carew OpenBuilds Team
    Staff Member Moderator Project Maker Builder Resident Builder

    Joined:
    Jun 28, 2013
    Messages:
    2,601
    Likes Received:
    2,162
    As I remember I believe that it was just the gcode mm generic option

  24. ArtCAM User

    Builder

    Joined:
    Jul 10, 2017
    Messages:
    2
    Likes Received:
    1
    Many thanks for sharing this information. :thumbsup:

    Mark Carew likes this.
  25. Kevin1971

    Kevin1971 New
    Builder

    Joined:
    Jun 22, 2017
    Messages:
    3
    Likes Received:
    0
    I'm looking at turning this into a 4'X8' build has anyone tried it and if so what kind of problems have you had if any. Would you use drive screws or do you think the belt will work that big?

  26. stargeezer

    stargeezer Journeyman
    Builder

    Joined:
    Feb 20, 2015
    Messages:
    330
    Likes Received:
    117
    The 4ft width is not a real problem. Belt drive will work on that length, but Acme or Ball Screws will be better. For 8ft there's no question in my mind that you would need ballscrews, there's too much stretch in a GT2 belt, in my opinion. The other issue may be finding 8tf long V-slot. The OB parts store has 1.5 meter V-Slot in stock, but I have not seen 8ft pieces anywhere.

  27. Kevin1971

    Kevin1971 New
    Builder

    Joined:
    Jun 22, 2017
    Messages:
    3
    Likes Received:
    0
    The 8' 8020 is not problem for me I have a friend making me a set of 2' steel keys for the side V slots and then plan to pull it all together with all-thread using 2 4' pieces.
    now just need to make mounts for bearings and ball screw.

  28. Jestah

    Jestah Well-Known
    Builder

    Joined:
    Dec 4, 2013
    Messages:
    148
    Likes Received:
    83
    watch out for screw whip and rotational inertia with long screws. Rack and pinion is generally more cost effective for routers in longer travels. Using wide belts could also work but you may want to step it up to a 15mm wide belts and also add in a "double belt" system too.

    Serge E. and Kevin1971 like this.
  29. Lstj

    Lstj New
    Builder

    Joined:
    Sep 24, 2015
    Messages:
    15
    Likes Received:
    0
    why, when pocket right side like this ?

  30. Serge E.

    Serge E. Journeyman
    Builder

    Joined:
    May 6, 2014
    Messages:
    733
    Likes Received:
    250

    Well, someone is making some of it work: SprayPrinter "climbs walls" to spray colour graffiti. Check a recent article here : SprayPrinter's latest graffiti robot hits new heights

    Here's a YouTube of the prototype already at work :



    Not so ridiculous after all, eh ? No need to etch through layers of paint, it uses colour "dots" to end up with an image that makes sense from a distance.

    Add a laser to etch the surface for added depth. I will admit, routing/milling the surface would require that the device can hang on firmly as it digs into the media. Gecko like grip is already being shown as workable for a few other uses (ex: tires which don't slip on wet surfaces).

    Beyond the imagination, it takes someone to actually go out and try it. Think of the person who first used the wheel ...

    [​IMG]

    So the PoleOX ... or even your CNC rice grain engraver could be done. By the way, how the heck do they engrave anything ** BY HAND ** on a grain of rice anyways ?! I have trouble keeping the screwdriver on the screw head ! ;(
