OpenBuilds Enclosure Magnetic Door Catch

Discussion in 'Share Parts' started by Giarc, May 16, 2021.

  1. Giarc

    Giarc OpenBuilds Team
    Staff Member Moderator Builder Resident Builder

    Joined:
    Jan 24, 2015
    Messages:
    2,899
    Likes Received:
    1,613
    I added an Enclosure to my CNC Lathe to keep the chips from flying everywhere and to get the doors to latch shut, I designed and printed some brackets that had spots to insert 4mm magnets that lined up with the steel screws on the aluminum brackets on the interior of the doors. The easiest way to mount them is with drop in T-nuts. 12mm socket cap screws (I used low profile) are needed to mount them (3 per door). The bottom one is screwed to the table top as well as fastened to the V-slot. A #6 screw is what the hole was chamfered for in the design. The STLs and Fusion 360 file are included. They are also available here: Magnetic doorstops/latches for V-slot Extrusion enclosures by cgmllr100

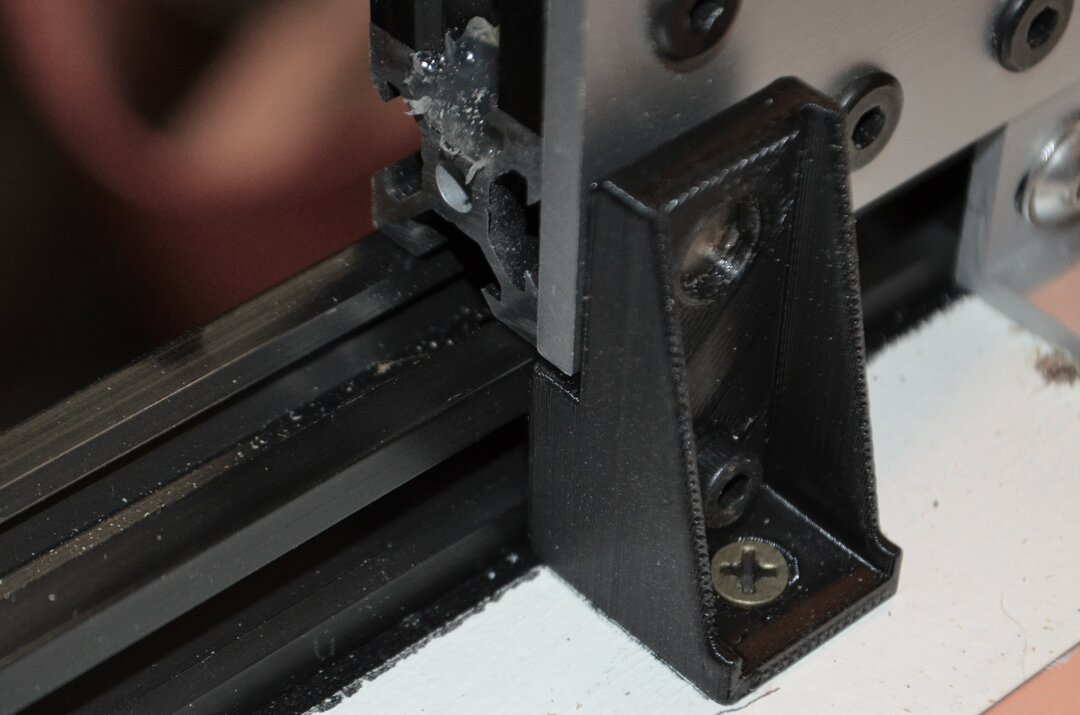

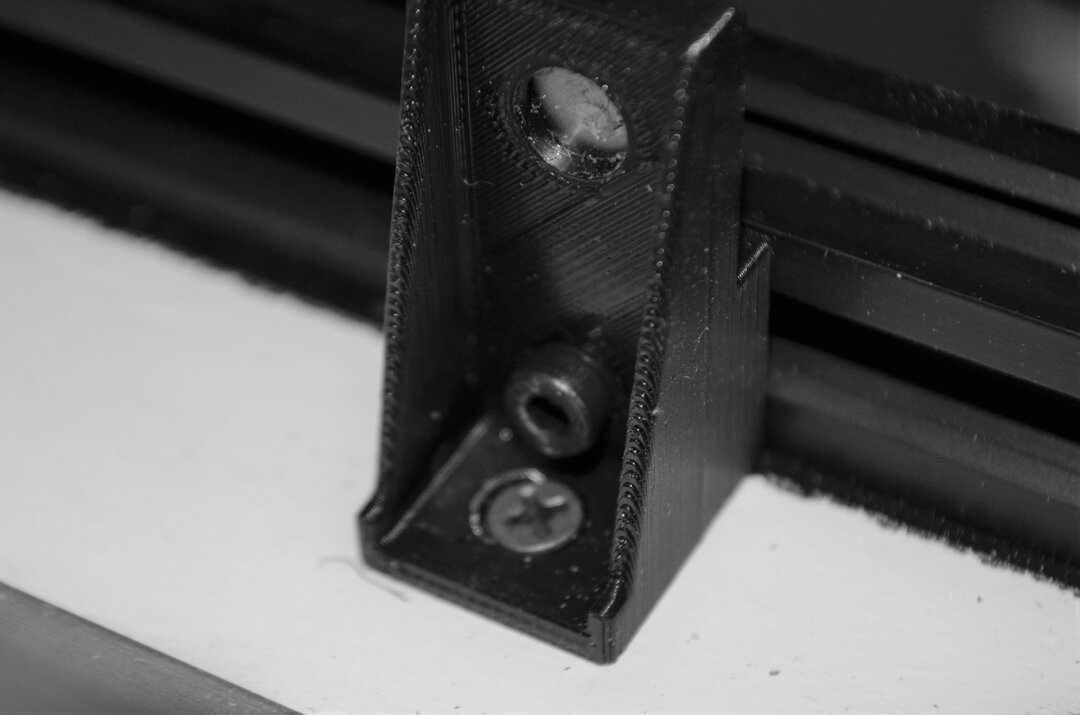

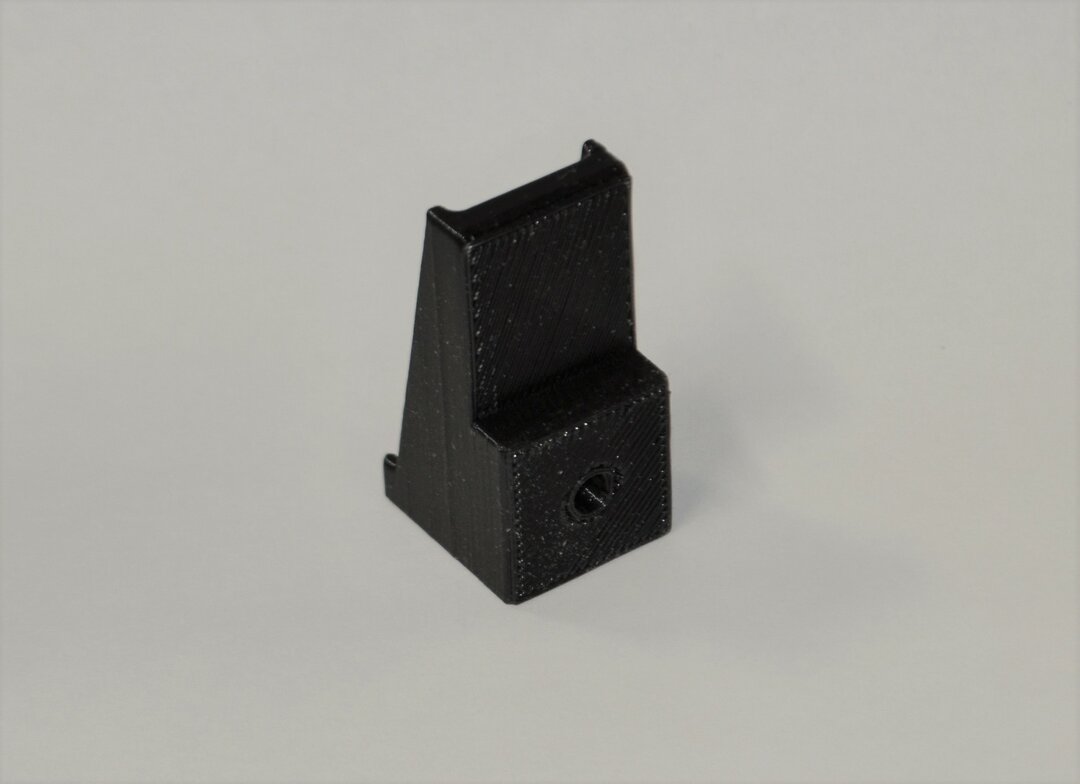

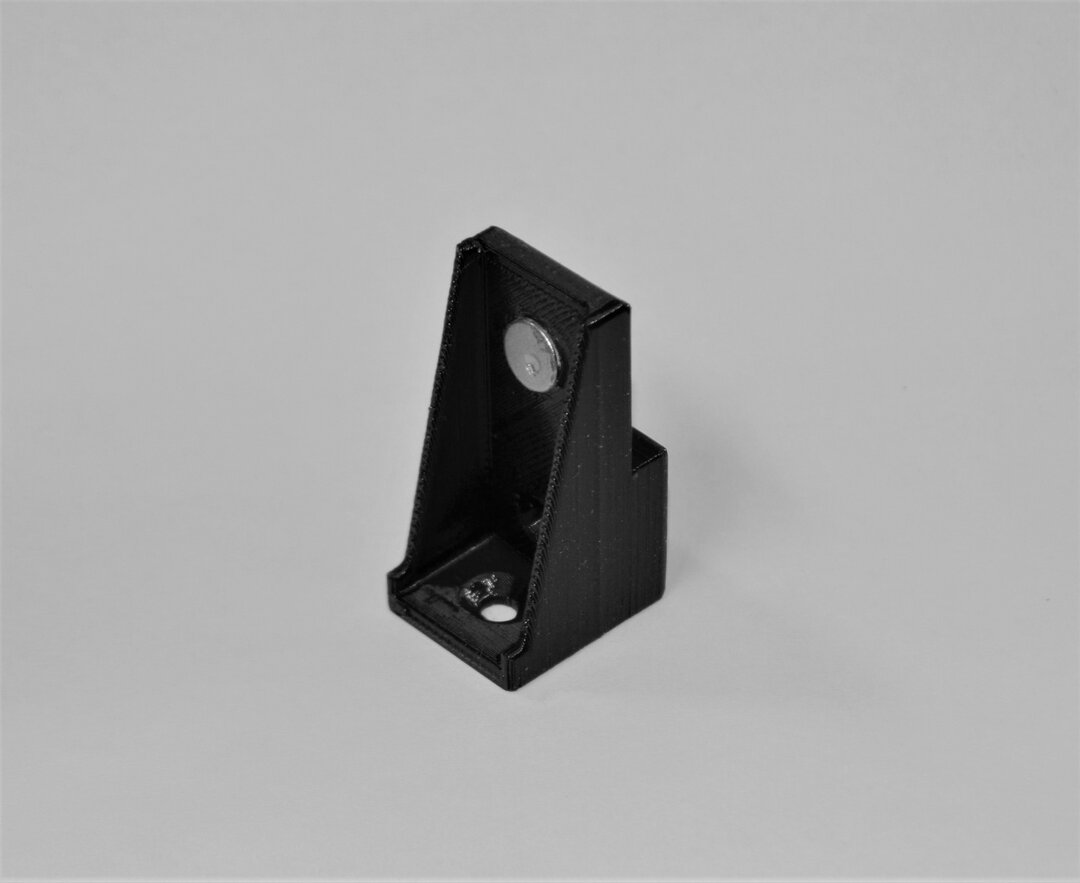

    Bottom pieces:
    DSC_0392.JPG DSC_0393.JPG
    DSC_0398.JPG DSC_0401.JPG

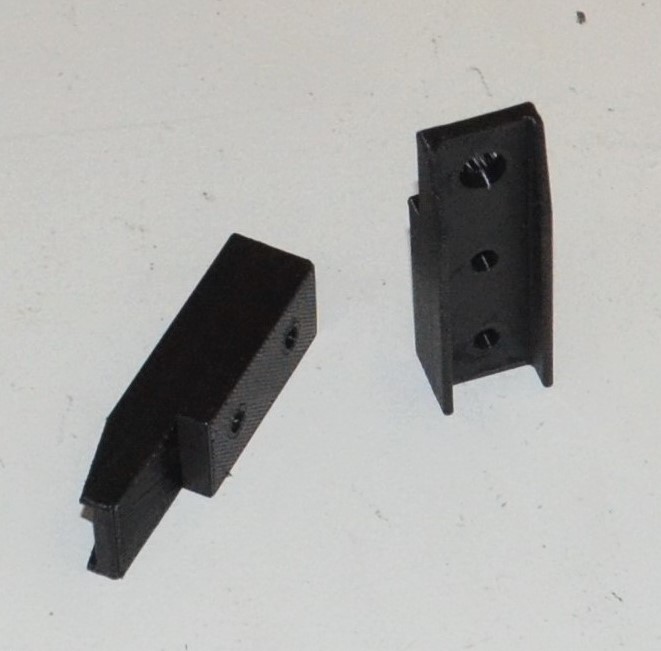

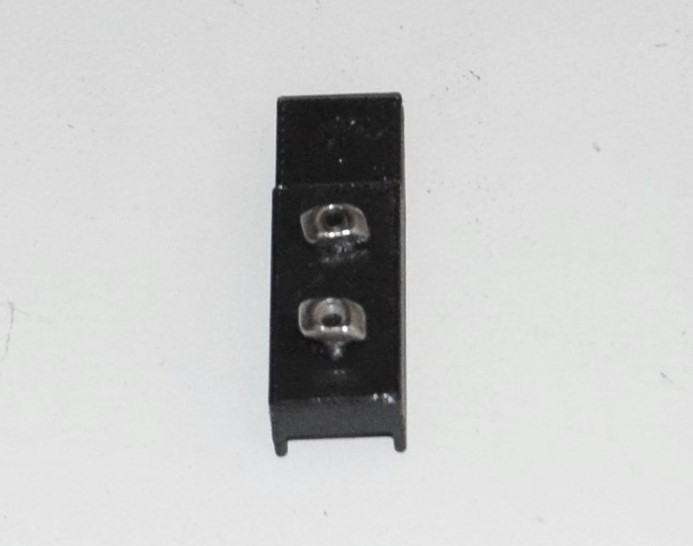

    Top Piece

    DSC_0404.JPG DSC_0406.JPG


    Attached Files:

    Alex Chambers and sharmstr like this.
