DM542A Wiring diagram to Arduino Uno

Discussion in 'Controller Boards' started by Cornerspace, Mar 18, 2021.

  1. Cornerspace

    Builder

    Joined:
    Oct 2, 2016
    Messages:
    57
    Likes Received:
    2
    Am trying to setup my CBeam after a break. But I lost the installation diagram files due to a system crash. Does anyone have a wiring schematic handy? Thanks.

  2. Rob Taylor

    Rob Taylor Master
    Builder

    Joined:
    Dec 15, 2013
    Messages:
    1,470
    Likes Received:
    746
  3. Cornerspace

    Builder

    Joined:
    Oct 2, 2016
    Messages:
    57
    Likes Received:
    2
    Ah, let me explain. I took apart my cbeam when I moved. Managed to find a location in the new place. However I disassembled the hookups to the Arduino board and forgot which wire goes where. I filed it away but the file got corrupted when I had a BSOD.

    I just need a guide as to where the wires are to be plugged in. Thanks.

  4. Peter Van Der Walt

    Peter Van Der Walt OpenBuilds Team
    Staff Member Moderator Builder Resident Builder

    Joined:
    Mar 1, 2017
    Messages:
    13,749
    Likes Received:
    4,070
  5. Rob Taylor

    Rob Taylor Master
    Builder

    Joined:
    Dec 15, 2013
    Messages:
    1,470
    Likes Received:
    746
    I'm not really sure what's missing there- that's the link to the page with the wiring instructions?

  6. ljvb

    ljvb Well-Known
    Builder

    Joined:
    Feb 14, 2019
    Messages:
    276
    Likes Received:
    87

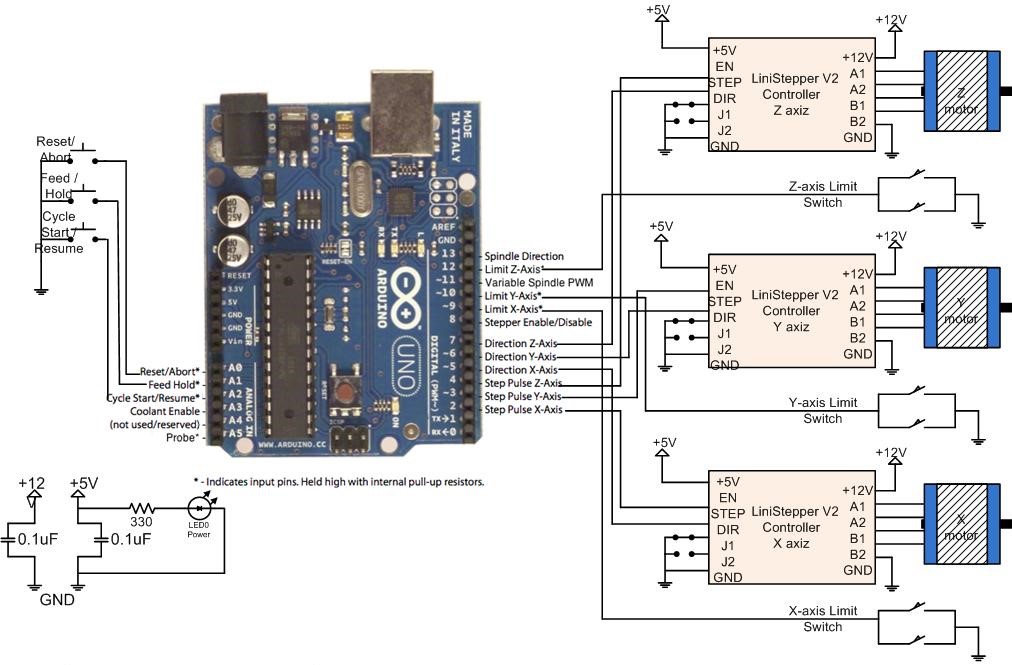

    Are you using a shield, or wiring directly to an Uno. Here is a basic diagram I found if directly, more than likely not the exact same, but will give you an idea. If you are using a shield, find the documentation for that shield.
    [​IMG]

  7. Cornerspace

    Builder

    Joined:
    Oct 2, 2016
    Messages:
    57
    Likes Received:
    2
    Am wiring directly to the Uno. Gonna slowly work around it. Fingers crossed.
