DIY CNC Machine

Discussion in 'CNC Mills/Routers' started by BooTec, Jun 8, 2019.

DIY CNC Machine

DIY CNC Machine

Discussion in 'CNC Mills/Routers' started by BooTec, Jun 8, 2019.

In this project, I show you how I built my DIY CNC machine. All moving parts of the DIY CNC router are running on ball bearings while the structural parts are made with natural materials, namely birch plywood and solid beech wood.

DIY CNC Machine Router 3-axis
Thread Status:
Not open for further replies.
Page 2 of 2
  1. Amadiro

    Amadiro New
    Builder

    Joined:
    Jan 1, 2020
    Messages:
    3
    Likes Received:
    0

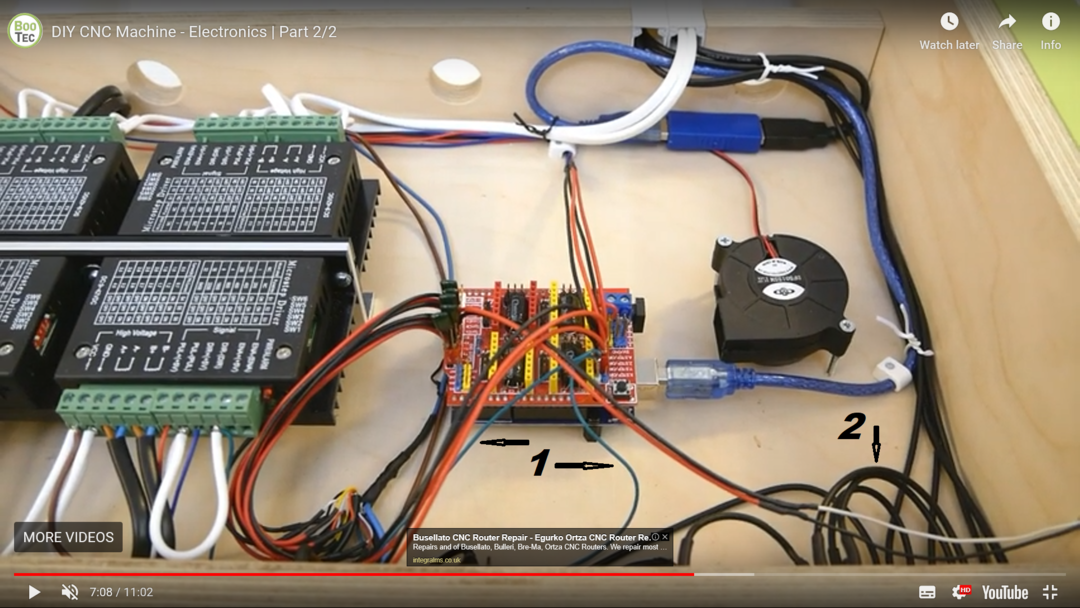

    still unsure as to some of the electronic wiring

    1. There are 2 green/blue wires coming off the enable pin on the CNC shield not sure where they go.
    and
    2. What are these connections at 2


    #31 Amadiro, Jan 10, 2020
  2. Joren Meesters

    Joren Meesters New
    Builder

    Joined:
    Apr 22, 2020
    Messages:
    1
    Likes Received:
    0
    Hi, I really like the way you build this machine and I'm interested in building it myself.
    Do you have any plans (CAD or PDF) to share with dimensions for the rails etc?
    Thanks in advance!

    #32 Joren Meesters, Apr 22, 2020
  3. OnlyNoly

    OnlyNoly New
    Builder

    Joined:
    Jun 30, 2020
    Messages:
    2
    Likes Received:
    0
    Hi Bootec,
    Very nice job,
    Could you please share the CAD drawing file.
    Thanks.

    #33 OnlyNoly, Jun 30, 2020
  4. Giarc

    Giarc OpenBuilds Team
    Staff Member Moderator Builder Resident Builder

    Joined:
    Jan 24, 2015
    Messages:
    2,923
    Likes Received:
    1,620
    I think all he did was come here and post it then leave. He hasn't been back for over 24 weeks. He says how to figure out how to reconstruct it from the video here DIY CNC Machine but if you look at post 30, you will see he sells the plans so it is not opensource.

    #34 Giarc, Jul 1, 2020
  5. OnlyNoly

    OnlyNoly New
    Builder

    Joined:
    Jun 30, 2020
    Messages:
    2
    Likes Received:
    0
    Thanks Giarc, I was after the CAD drawing files but I guess I'll have to settle with the video and plans

    #35 OnlyNoly, Jul 1, 2020
  6. Tuoman

    Tuoman New
    Builder

    Joined:
    Dec 25, 2019
    Messages:
    3
    Likes Received:
    1

    CNC shield "GND"------------->TB6600 "DIR-"

    #36 Tuoman, Jul 27, 2020
  7. ColinJ

    ColinJ New
    Builder

    Joined:
    Nov 19, 2020
    Messages:
    1
    Likes Received:
    0
    Could I please have a copy of your plans.

    #37 ColinJ, Nov 19, 2020
  8. Giarc

    Giarc OpenBuilds Team
    Staff Member Moderator Builder Resident Builder

    Joined:
    Jan 24, 2015
    Messages:
    2,923
    Likes Received:
    1,620
    They are not opensource. He sells them.

    #38 Giarc, Nov 19, 2020
  9. Pierre Smit

    Pierre Smit New
    Builder

    Joined:
    Jan 27, 2021
    Messages:
    3
    Likes Received:
    0
    Is it possible for me to obtain the cad files also?

    #39 Pierre Smit, Aug 26, 2021
  10. JustinTime

    JustinTime Veteran
    Builder

    Joined:
    Dec 18, 2013
    Messages:
    759
    Likes Received:
    253
    I have built a very similar machine. The only thing that required some planning was the Gantry plates. Every thing else I did on the fly depending on the space I have or the size of the material I wanted to cut. I had bought on AliExpress the linear rails and ball screws and then build the machine to accommodate these.

    #40 JustinTime, Aug 26, 2021
    David the swarfer likes this.
  11. Pierre Smit

    Pierre Smit New
    Builder

    Joined:
    Jan 27, 2021
    Messages:
    3
    Likes Received:
    0
    Thank you. Good advice.

    #41 Pierre Smit, Aug 28, 2021
  12. geniculata

    geniculata New
    Builder

    Joined:
    Aug 29, 2021
    Messages:
    1
    Likes Received:
    0
    Hello,
    Can you please share your cad drawing with me too?
    Thank you very much.

    #42 geniculata, Aug 29, 2021
  13. Pierre Smit

    Pierre Smit New
    Builder

    Joined:
    Jan 27, 2021
    Messages:
    3
    Likes Received:
    0
    He did not reply to my request. I am following the advice of "Justin Time"

    #43 Pierre Smit, Aug 30, 2021
